Product Description

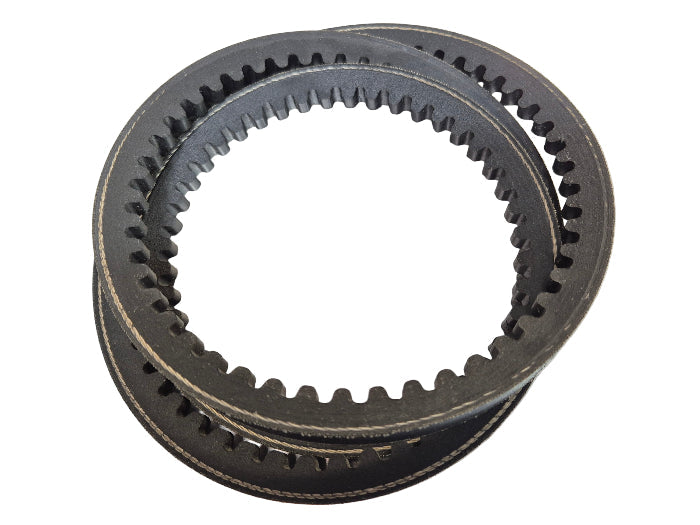

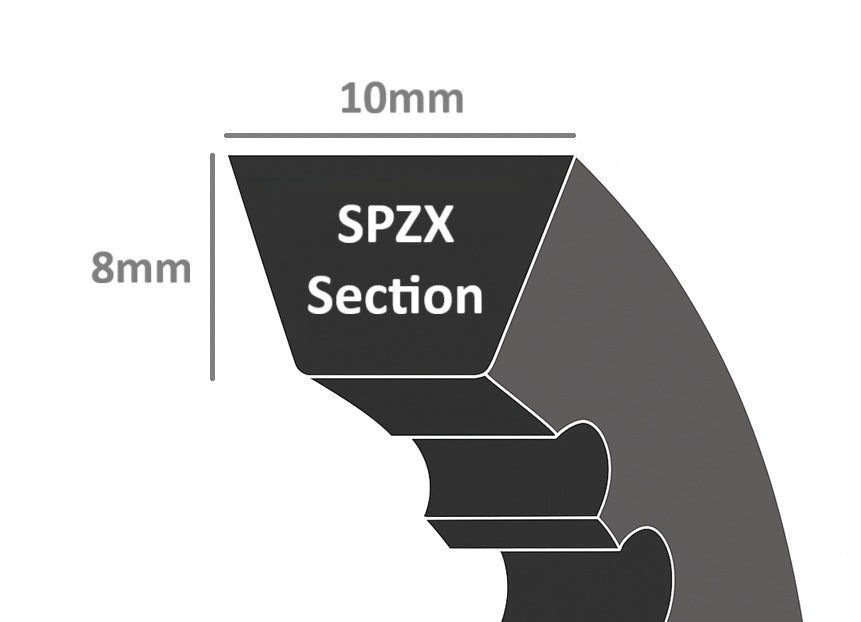

SPZX Raw Edge Cogged Wedge V Belts have a nominal top width of 10mm and a nominal thickness of 8mm (actual dimensions may vary slightly). More flexible than wrapped wedge belts, these have notches that allow them to bend around small-diameter pulleys and accommodate twists and turns on curved drives.
| Belt Section | SPZX (XPZ) |
| Type | Cogged Wedge V Belt |
| Width Imperial | 3/8in |
| Width Metric | 10mm |
| Pitch (Effective) Length Imperial | 110.2in |
| Pitch (Effective) Length Metric | 2800mm |
| Thickness Metric | 8mm |
| Min Pulley Diameter | 63mm (per ISO/DIN/RMA guidelines) |
| Number of Bands | 1 |
| Material | Rubber |
| Unit | Each |
