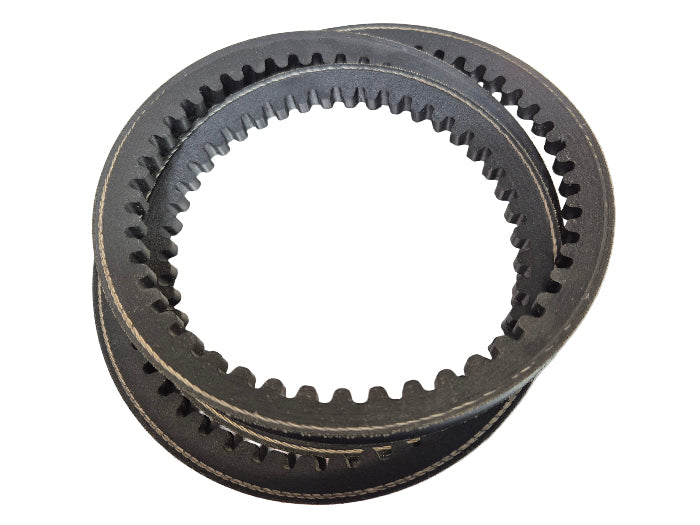

SPBX1700 (XPB1700) Cogged Wedge V Belt

SKU: 146SPBX170
Price:
Sale price$84.43

Stock:
18 units
Each

Product Description

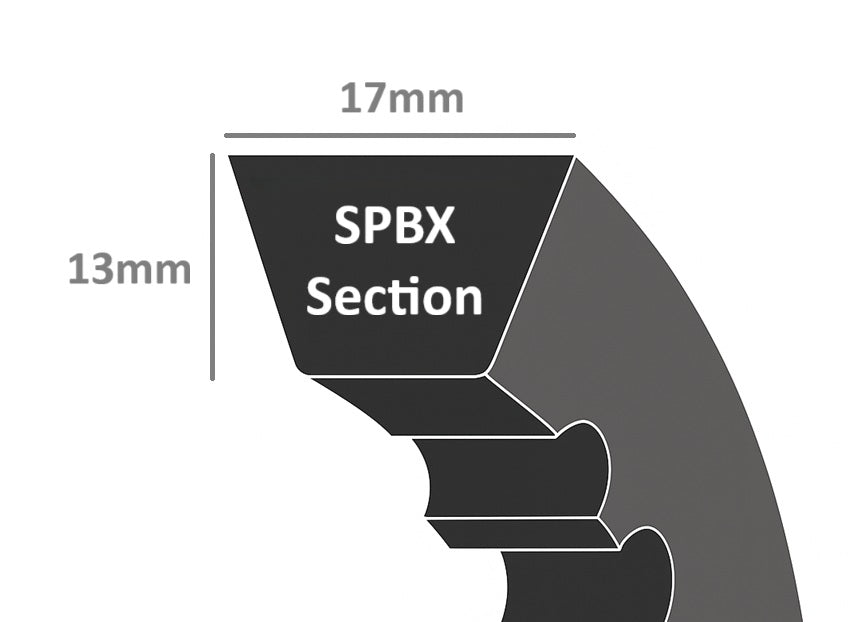

SPBX Raw Edge Cogged Wedge V Belts have a nominal top width of 17mm and a nominal thickness of 13mm (actual dimensions may vary slightly). More flexible than wrapped wedge belts, these have notches that allow them to bend around small-diameter pulleys and accommodate twists and turns on curved drives.

Belt Section SPBX (XPB)
Type Cogged Wedge V Belt
Width Imperial 5/8in
Width Metric 17mm
Pitch (Effective) Length Imperial 67in
Pitch (Effective) Length Metric 1700mm
Thickness Metric 13mm
Min Pulley Diameter 140mm (per ISO/DIN/RMA guidelines)
Number of Bands 1
Material Rubber
Unit Each
