Product Description

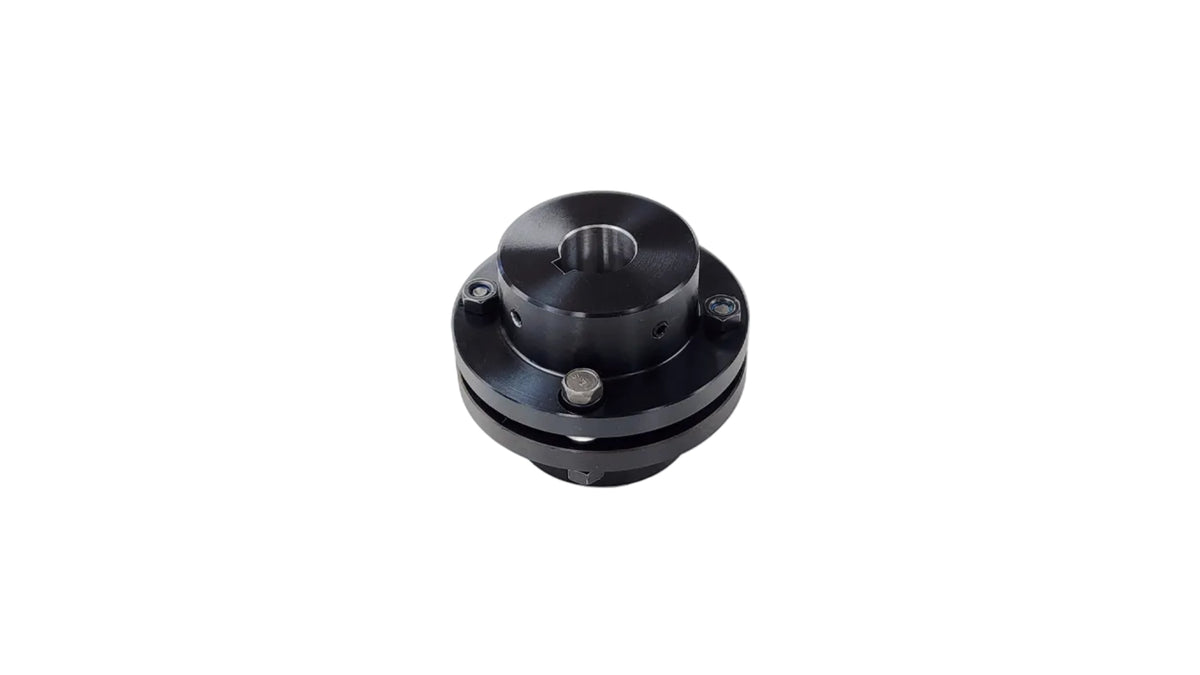

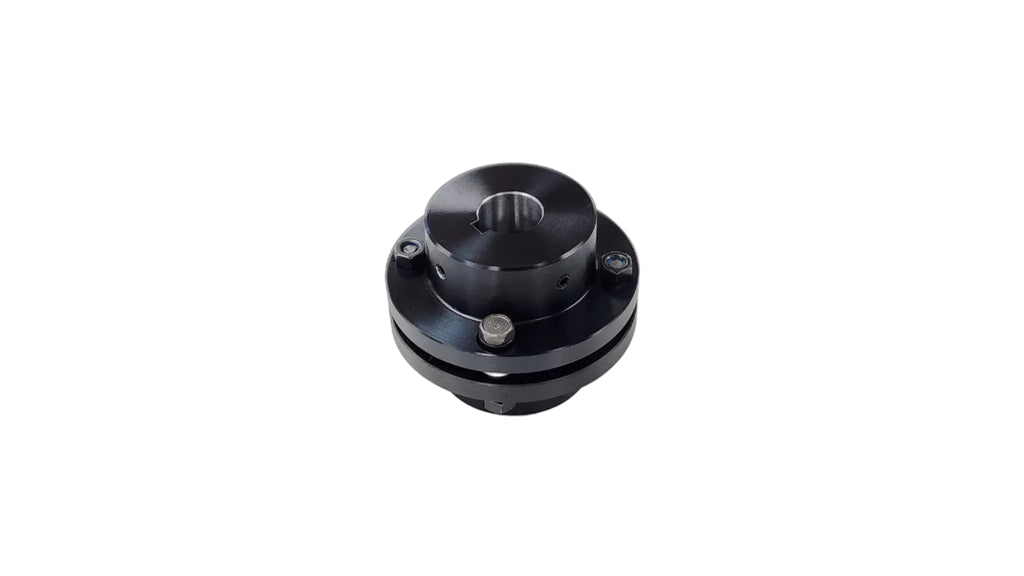

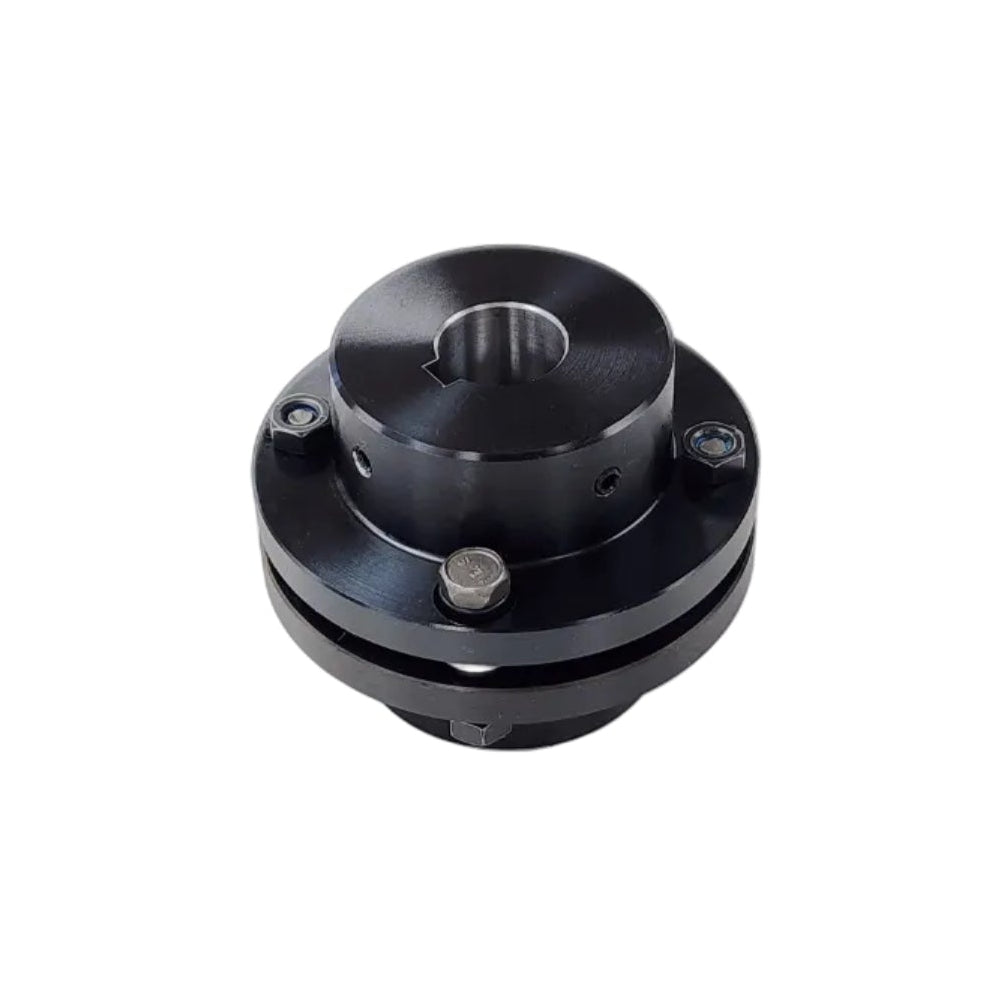

The MIKI Servoflex SFS Series is a high-precision, zero-backlash servo coupling designed for demanding motion control applications. Supplied with 20mm finished bores for quick installation, these couplings offer excellent torsional rigidity, low inertia, and accurate power transmission while accommodating minor shaft misalignment. Ideal for servo motors, automation systems, CNC machinery, and other precision drive applications.
| Type | Complete coupling |
| Series / Model | SFS-08S |
| Bore Size | 20mm each side |
| Max Bore | 35mm |
| Outside Diameter | 82mm |
| Overall Length | 66mm |
| Nominal Torque | 80Nm |
| Max Speed | 17,000 rpm |
| Max Misalignment | 1° angular, ±1.0mm axial. |
| Operating Temperature Range | -30°C to +120°C |
| Tightening Bolts Type | M6 x 4 |
| Tightening Torque (Nm) | 14Nm |
| Material | S45C medium-carbon steel |
| Brand | MIKI Pulley |
| Unit | Each |
