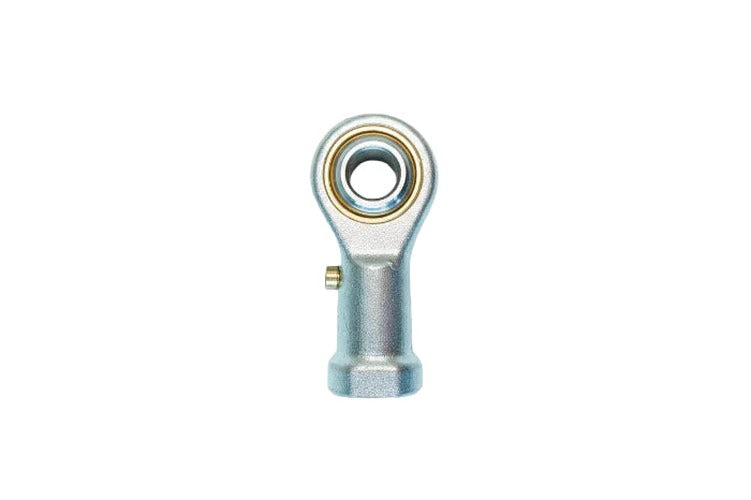

SPHS5 Stainless Steel Metric Rod End Female (M5x0.8) - Right

SKU: 121405FRS
Price:
Sale price$18.36

Stock:
Sold out
Each

Product Description

Rod Ends are mechanical components used to connect rods to other parts, providing smooth motion and reliable articulation. Featuring a spherical ball within a housing, they allow rotational movement while handling both axial and radial loads. Rod ends are commonly used in automotive, industrial, and aerospace applications for precision movement and durability.

Type Rod End
Series / Model SPHS5
Inside Diameter 5mm
Head Diameter 16mm
Head Width 8mm
Overall Length 35mm
Thread Size M5x0.8
Thread Direction Right
Thread Gender Female
Thread Length 13mm
Material Body: Stainless Steel; Sliding contact surfaces: Steel/Brass
Unit Each
