Product Description

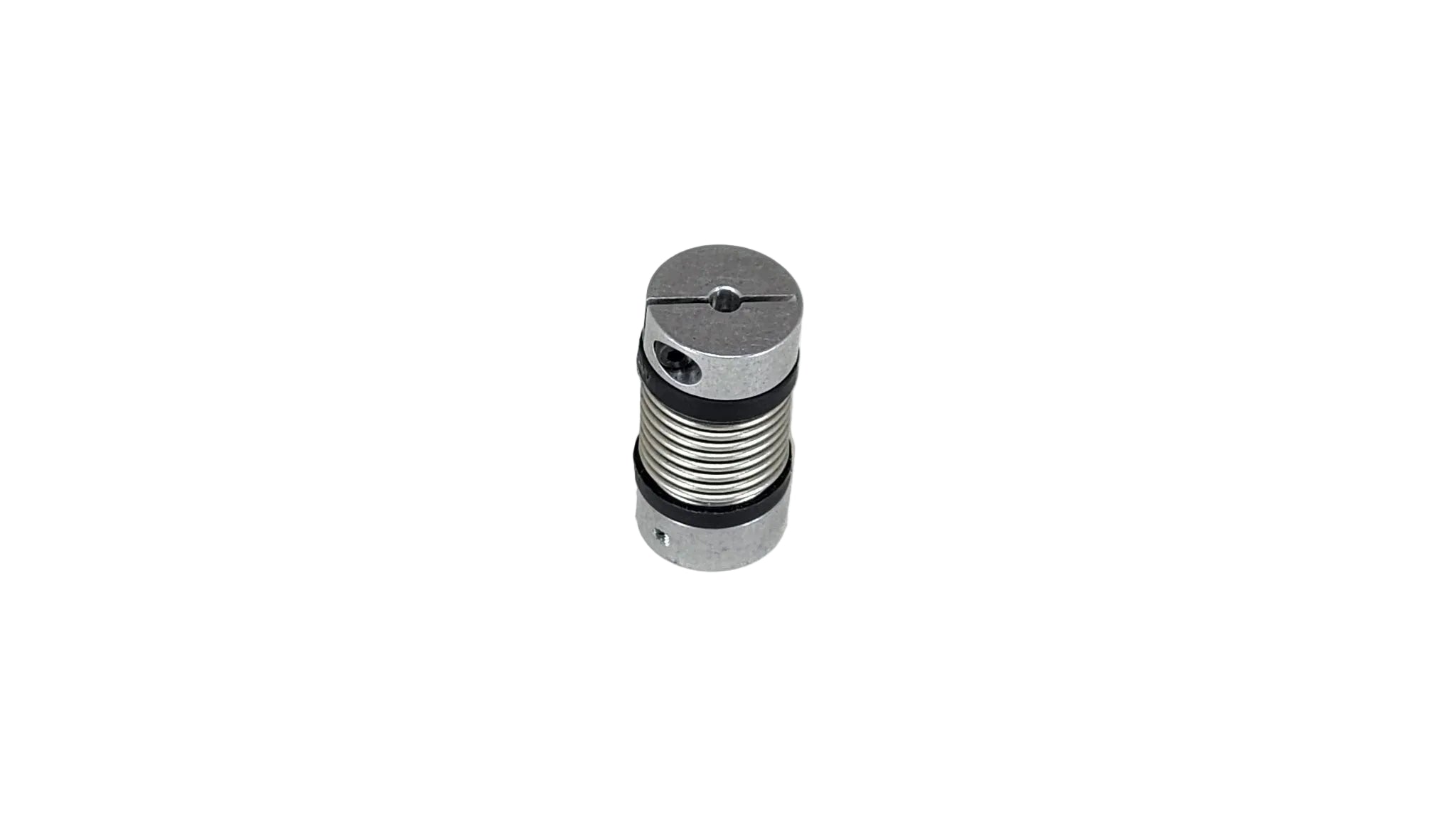

The R+W MK2 miniature bellows coupling delivers precise, backlash-free torque transmission and high torsional rigidity for demanding motion control applications. Designed with precision clamping hubs and a durable metal bellows, the MK2 effectively compensates for shaft misalignment while maintaining exceptional positioning accuracy and repeatability. Its compact design, low moment of inertia and maintenance-free operation make it an excellent choice for servo systems, automation equipment, medical devices and precision machinery.
| Type | Complete coupling |
| Series / Model | MK2 |
| Shaft Coupling Type | Precision miniature bellows coupling |
| Bore Size | 3mm each side |
| Bore Type | Pilot bore |
| Max Bore | 7mm each side |
| Outside Diameter | 15mm |
| Overall Length | 30mm |
| Nominal Torque | 1.0Nm |
| Shaft Misalignment Type | Parallel, Angular, Axial |
| Max Misalignment | 0.5mm axial; 0.2mm lateral; 1.5° angular. |
| Operating Temperature Range | -30°C to 100°C |
| Material | Aluminium hubs, stainless steel bellows |
| Brand | R+W |
| Unit | Each |
