Product Description

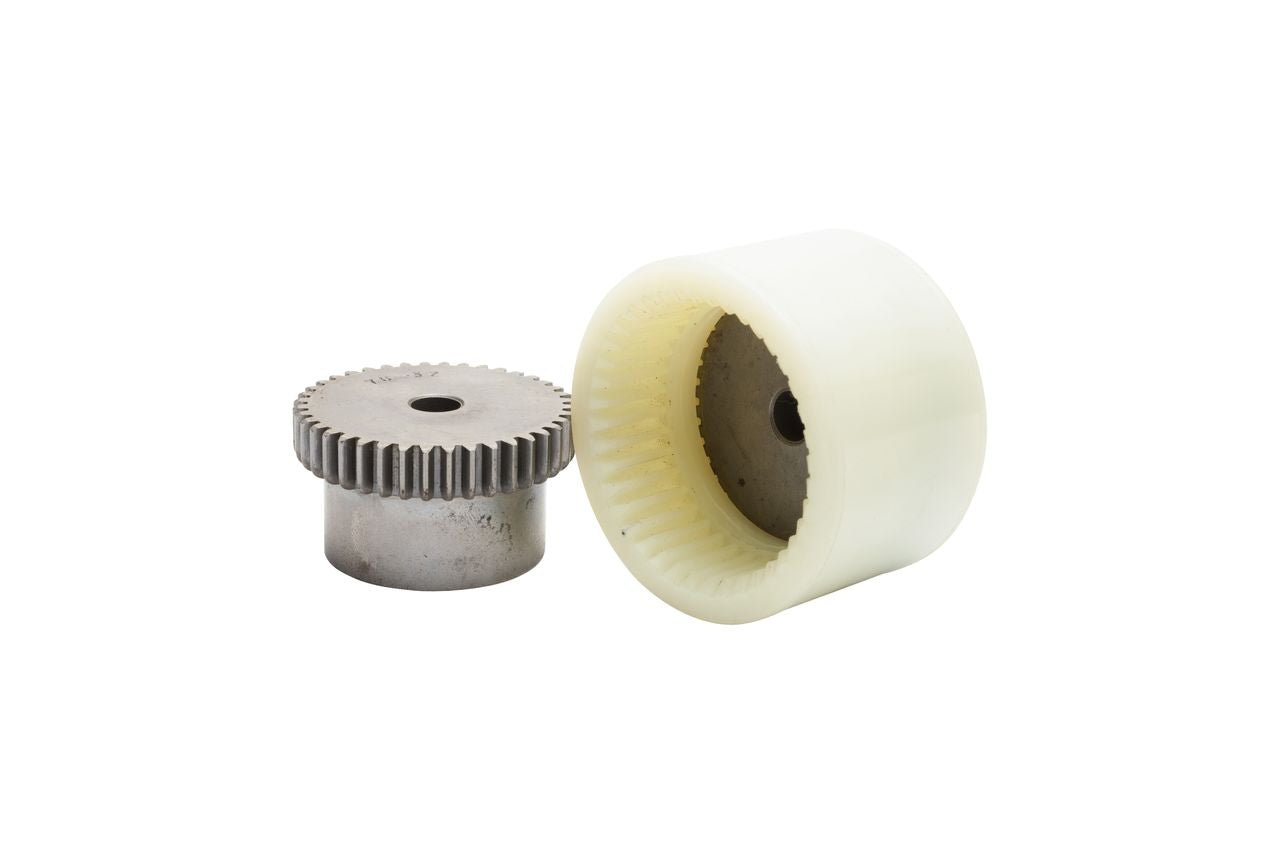

Made with lightweight nylon sleeves, these gear couplings require less energy to move than other high-torque flexible couplings. They compensate for parallel, angular, and axial misalignment. They come with an unfinished pilot bore.
| Type | Complete coupling |
| Series / Model | M38 |
| Shaft Coupling Type | Flexible |
| Bore Size | Pilot Bore |
| Max Bore | 38mm |
| Boss Diameter | 58mm |
| Sleeve Diameter | 83mm |
| Sleeve Material | Nylon |
| Sleeve Width | 48mm |
| Overall Length | 84mm |
| Nominal Torque | 78.0Nm (690.4lb-in) |
| Shaft Misalignment Type | Parallel, Angular, Axial |
| For Motion Type | Continuous |
| Material | Steel |
| Unit | Each |
