Product Description

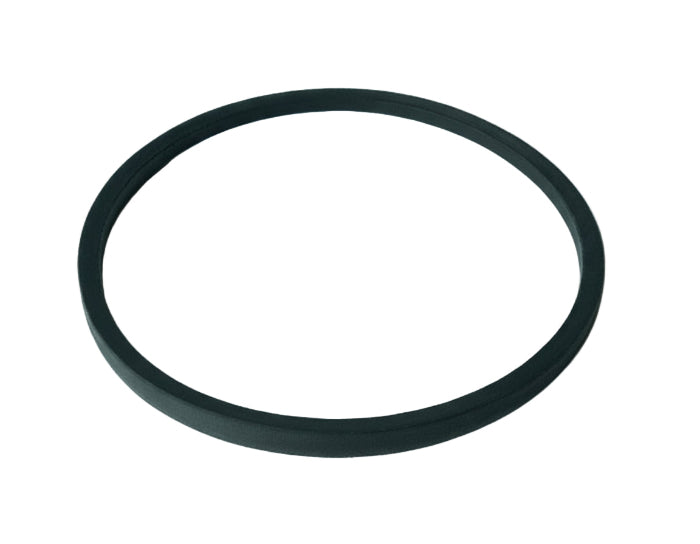

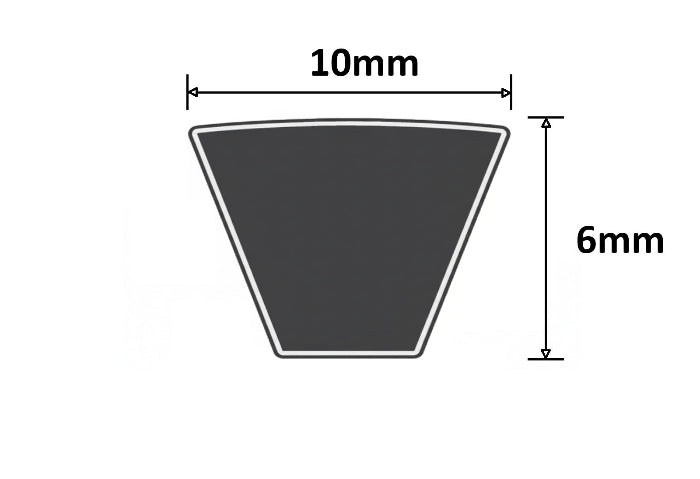

M or Z Section V Belts have a nominal top width of 10mm and a nominal thickness of 6mm (actual dimensions may vary slightly). They are used in medium to heavy drive systems that require power transmission of 1 HP or greater.
| Belt Section | M (Z) (3L) |
| Type | Wrapped Classical V Belt |
| Width Imperial | 3/8in |
| Width Metric | 10mm |
| Inside Length Imperial | 32.5in |
| Inside Length Metric | 826mm |
| Outside Length Imperial | 34.0in |
| Outside Length Metric | 864mm |
| Thickness Imperial | 1/4in |
| Thickness Metric | 6mm |
| Min Pulley Diameter | 63mm (per ISO/DIN/RMA guidelines) |
| Number of Bands | 1 |
| Material | Rubber |
| Reinforcement Material | Polyester |
| Weight | 0.047 |
| Unit | Each |
