Product Description
Cast iron jaw couplings offer high strength and durability for heavy-duty applications. They provide reliable torque transmission while absorbing shock and misalignment. Ideal for pumps, gearboxes, and conveyors in industrial environments.

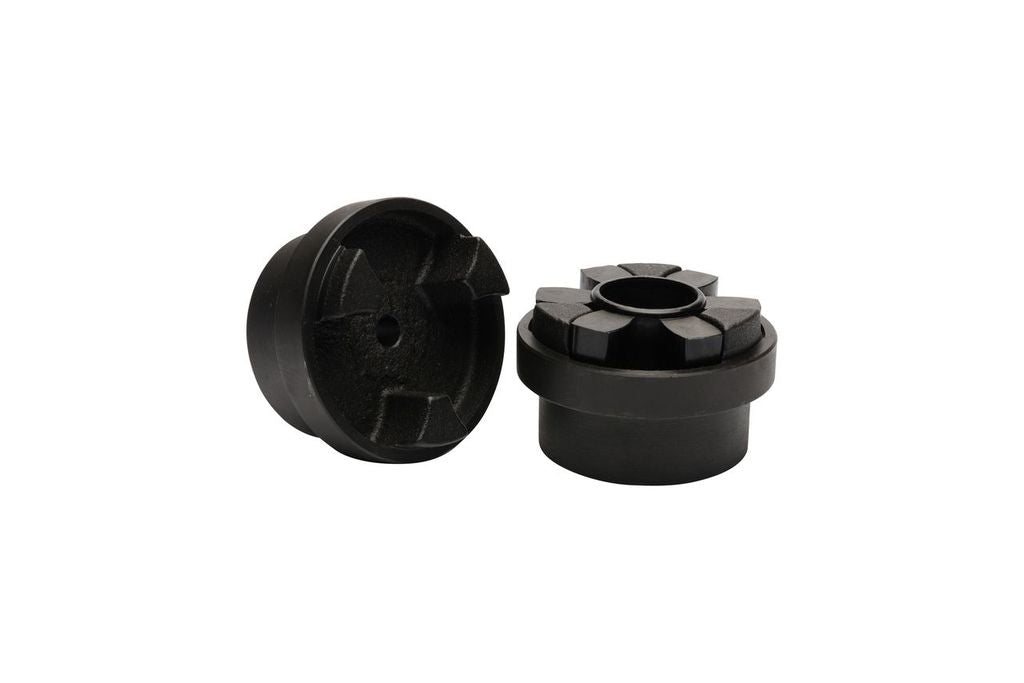

| Type | Cast Iron Jaw Coupling |
| Series / Model | L050 |
| Bore Size | Pilot Bore |
| Max Bore | 0.625in (15.9mm) |
| Outside Diameter | 1.08in (27.43mm) |
| Overall Length | 1.71in (43.4mm) |
| Nominal Torque | 2.97Nm (26.3in-lbs) |
| Max Speed | 18,000 rpm |
| Material | Cast Iron |
| Unit | Each |
