HRC280 Coupling Pilot Bore

SKU: 155H280B
Price:
Sale price$1,487.85

Stock:
3 units
Each

Product Description

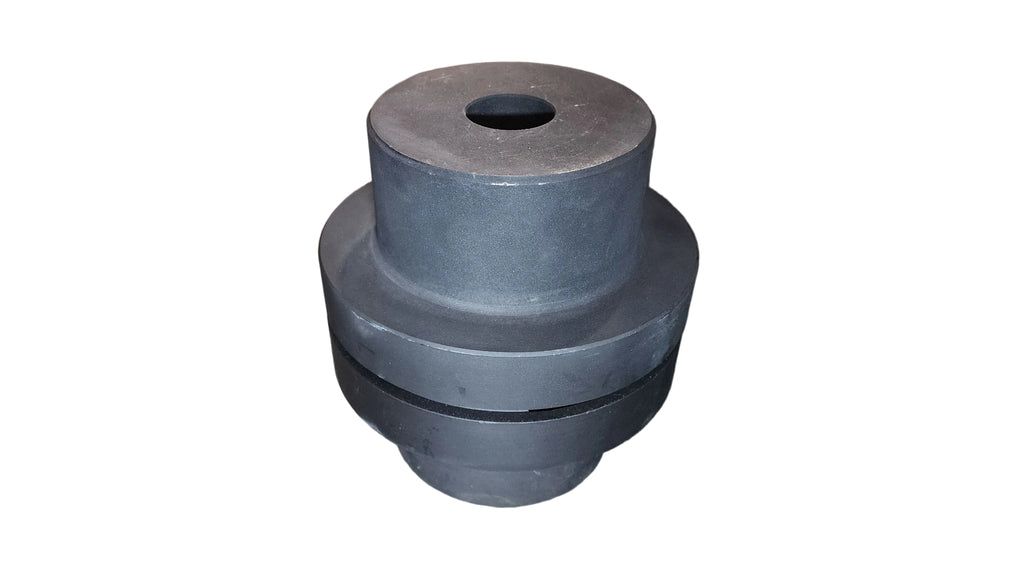

HRC pilot bore couplings provide a simple and reliable solution for transmitting power between rotating shafts while helping to reduce shock loads, vibration and noise. Supplied with a resilient rubber element, they accommodate minor shaft misalignment and help protect motors, pumps, gearboxes and other driven equipment from damaging torque fluctuations. Rubber elements are recommended for most general industrial applications where smooth operation, vibration damping and equipment protection are important. Common uses include pumps, fans, compressors, conveyors and electric motor drives.

Type HRC Coupling
Series / Model HRC280
Bore Type Pilot Bore
Max Bore 90mm
Outside Diameter 275mm
Overall Length 285.5mm
Nominal Torque 3150Nm
Max Speed 2,200 rpm
Max Misalignment 0.5mm parallel, 1.7mm axial
For Motion Type Continuous
Operating Temperature Range -40°C to +70°C
Material Cast Iron with rubber element
Unit Each
