Product Description

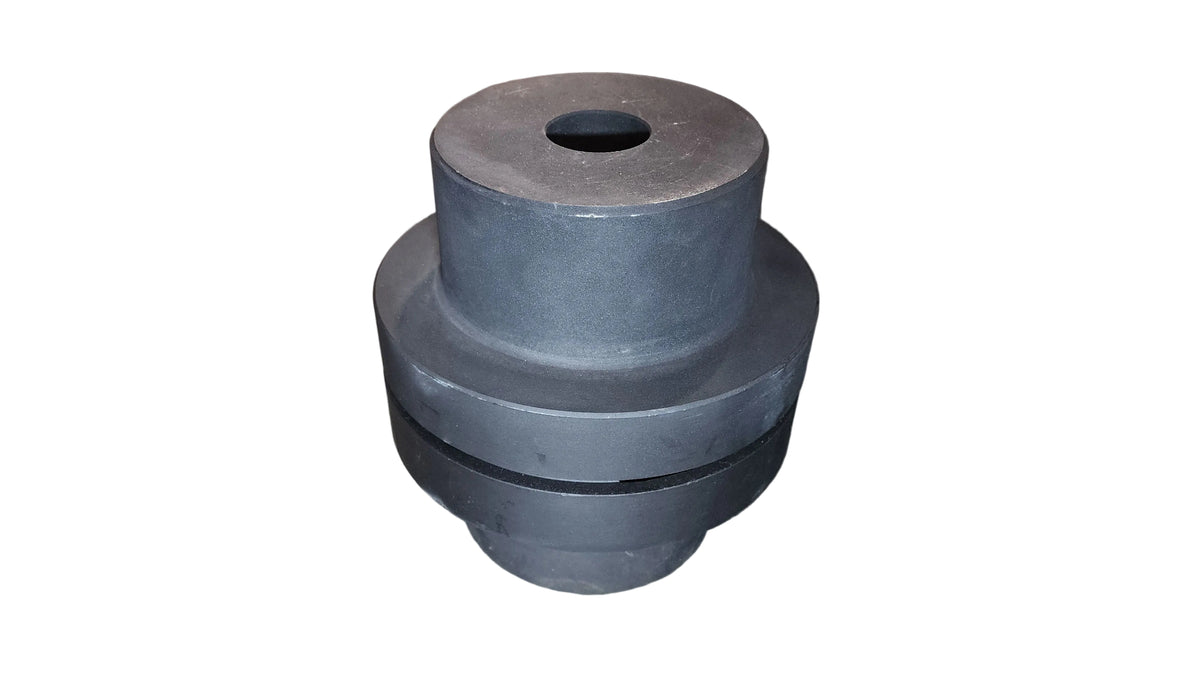

HRC pilot bore couplings provide a simple and reliable solution for transmitting power between rotating shafts while helping to reduce shock loads, vibration and noise. Supplied with a resilient rubber element, they accommodate minor shaft misalignment and help protect motors, pumps, gearboxes and other driven equipment from damaging torque fluctuations. Rubber elements are recommended for most general industrial applications where smooth operation, vibration damping and equipment protection are important. Common uses include pumps, fans, compressors, conveyors and electric motor drives.
| Type | HRC Coupling |
| Series / Model | HRC230 |
| Bore Type | Pilot Bore |
| Max Bore | 75mm |
| Outside Diameter | 225mm |
| Overall Length | 239.5mm |
| Nominal Torque | 2000Nm |
| Max Speed | 2,600 rpm |
| Max Misalignment | 0.5mm parallel, 1.3mm axial |
| For Motion Type | Continuous |
| Operating Temperature Range | -40°C to +70°C |
| Material | Cast Iron with rubber element |
| Unit | Each |
