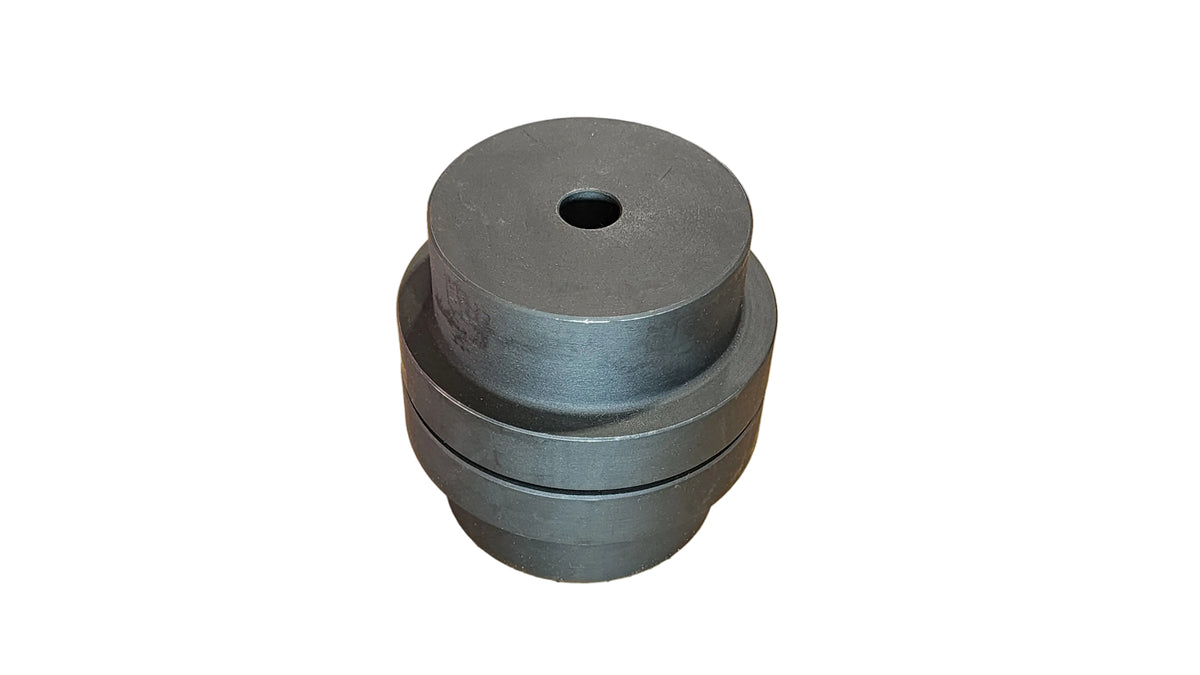

HRC130 Coupling Pilot Bore

SKU: 155H130B
Price:
Sale price$182.15

Stock:
6 units
Each

Product Description

HRC pilot bore couplings provide a simple and reliable solution for transmitting power between rotating shafts while helping to reduce shock loads, vibration and noise. Supplied with a resilient rubber element, they accommodate minor shaft misalignment and help protect motors, pumps, gearboxes and other driven equipment from damaging torque fluctuations. Rubber elements are recommended for most general industrial applications where smooth operation, vibration damping and equipment protection are important. Common uses include pumps, fans, compressors, conveyors and electric motor drives.

Type HRC Coupling
Series / Model HRC130
Bore Type Pilot Bore
Max Bore 42mm
Outside Diameter 130mm
Overall Length 131mm
Nominal Torque 315Nm
Max Speed 4,100 rpm
Max Misalignment 0.4mm parallel, 0.8mm axial
For Motion Type Continuous
Operating Temperature Range -40°C to +70°C
Material Cast Iron with rubber element
Unit Each
