Product Description

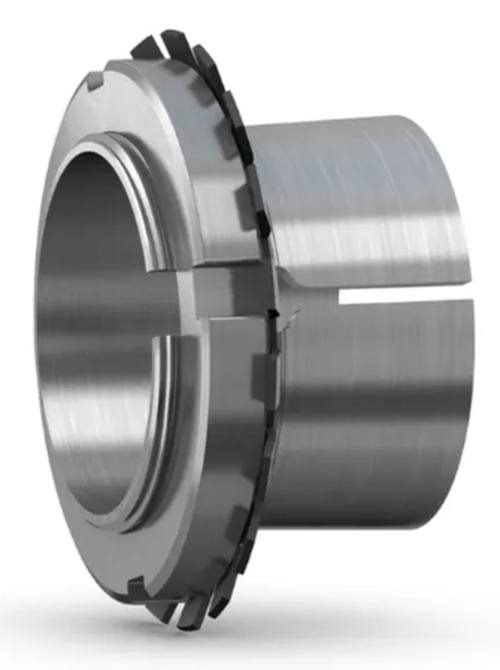

Adapter sleeves mount insert bearings with a tapered bore onto cylindrical shafts, ensuring a secure fit. They allow for easy installation, adjustment, and removal using a lock nut and washer. Ideal for heavy-duty applications, they accommodate standard shaft tolerances.
| Bearing Type | Adapter Sleeve |
| Type | Adapter Sleeve |
| Series / Model | HE2305 |
| Compatible with | UK205 Sleeve Bearing |
| Inside Diameter | 3/4in |
| Outside Diameter | 38mm |
| Width | 35mm |
| For Load Direction | Radial |
| Material | Steel |
| Unit | Each |
