Product Description

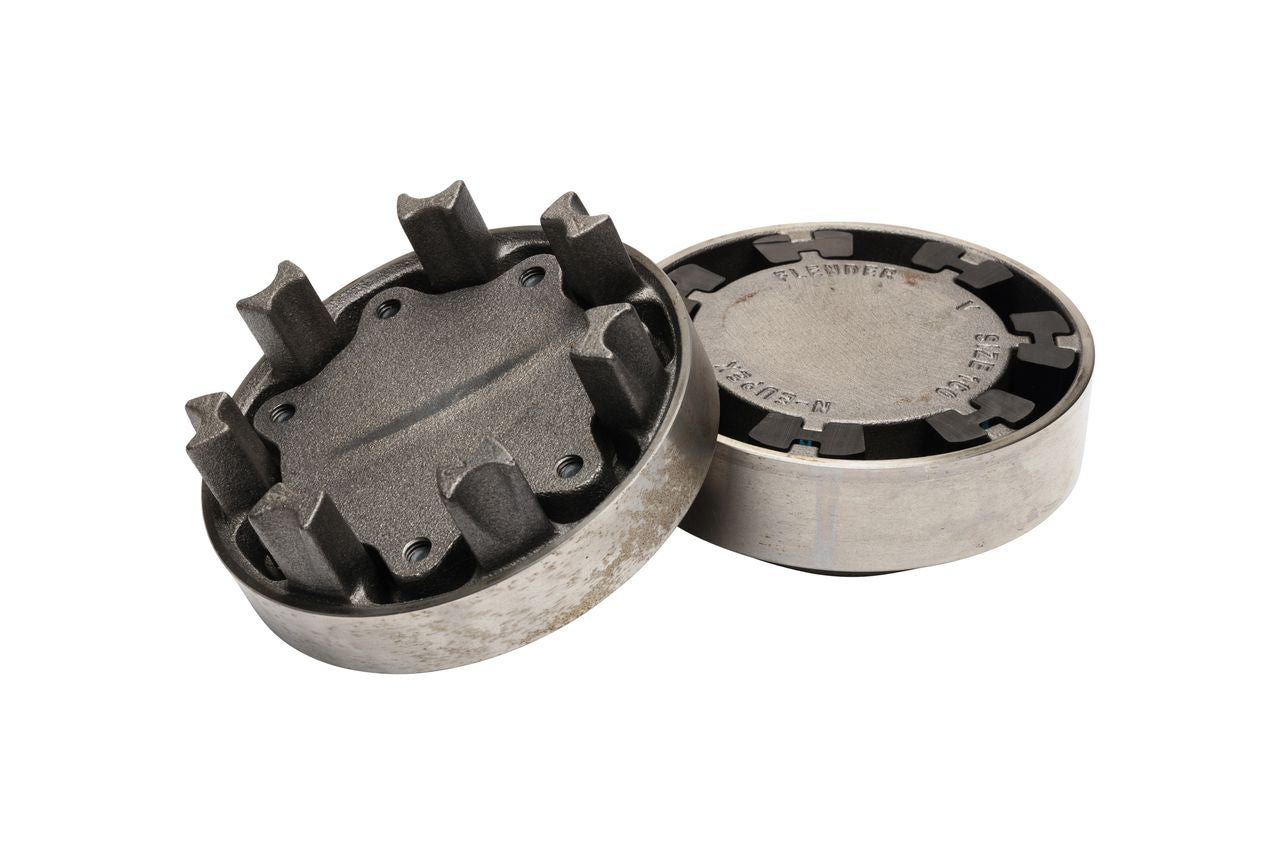

The N-EUPEX type A features a compact design with flexible elastomer elements for smooth power transmission. It absorbs shocks and compensates for misalignment, ensuring long service life. Suitable for high-performance drive applications in various industries.
| Type | N-EUPEX Coupling |
| Series / Model | N-EUPEX A225 |
| Bore Size | Pilot Bore |
| Max Bore | Female hub: 90mm; Male hub: 100mm |
| Outside Diameter | 225mm |
| Overall Length | 184mm |
| Nominal Torque | 2300Nm |
| Max Speed | 3,600 rpm |
| Material | Cast iron hubs, NBR (nitrile rubber) 80 shore A inserts |
| Brand | Flender |
| Unit | Each |
