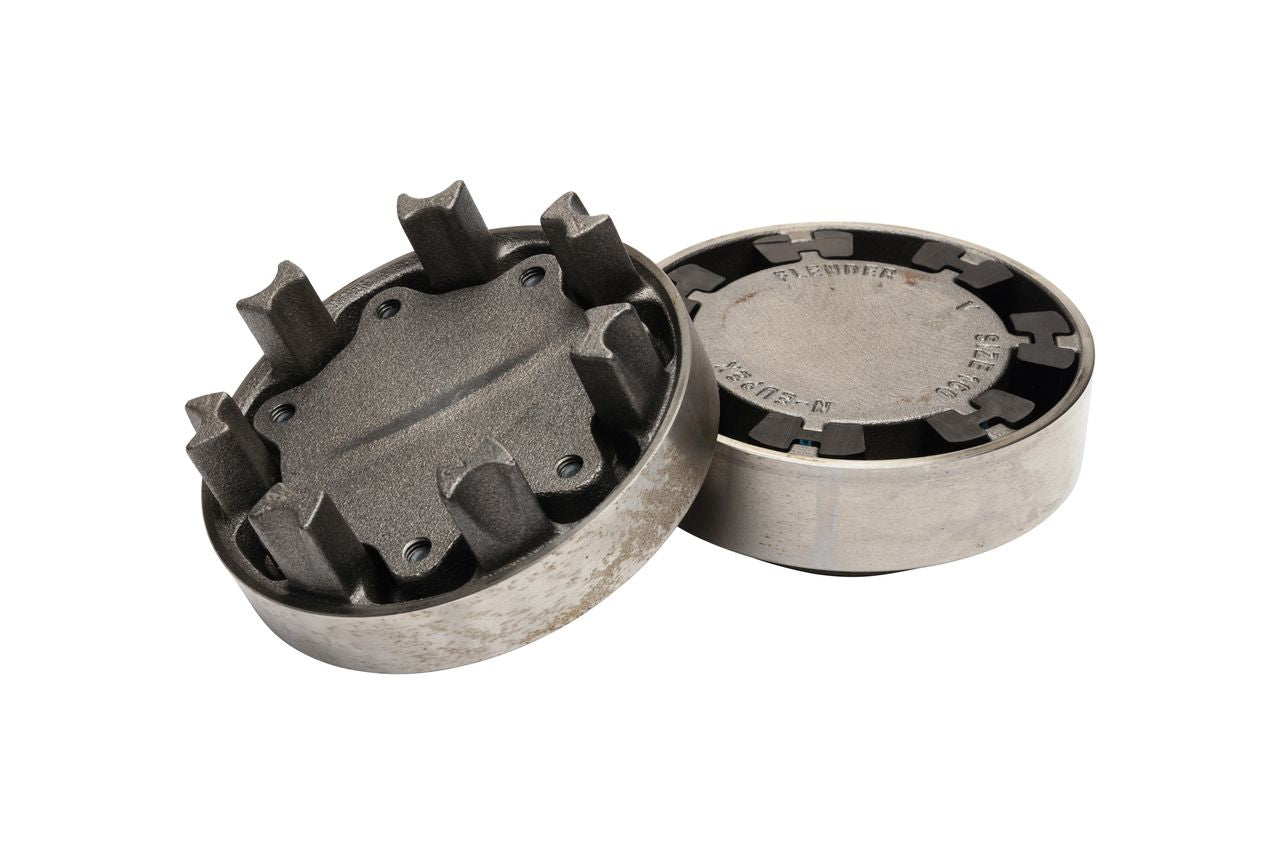

Product Description
The N-EUPEX type A features a compact design with flexible elastomer elements for smooth power transmission. It absorbs shocks and compensates for misalignment, ensuring long service life. Suitable for high-performance drive applications in various industries.
| Type | N-EUPEX Coupling |
| Series / Model | N-EUPEX A110 |
| Bore Size | Pilot Bore |
| Max Bore | Female hub: 55mm; Male hub: 45mm |
| Outside Diameter | 110mm |
| Overall Length | 83mm |
| Nominal Torque | 225Nm |
| Max Speed | 6,300 rpm |
| Material | Cast iron hubs, NBR (nitrile rubber) 80 shore A inserts |
| Brand | Flender |
| Unit | Each |
