Product Description

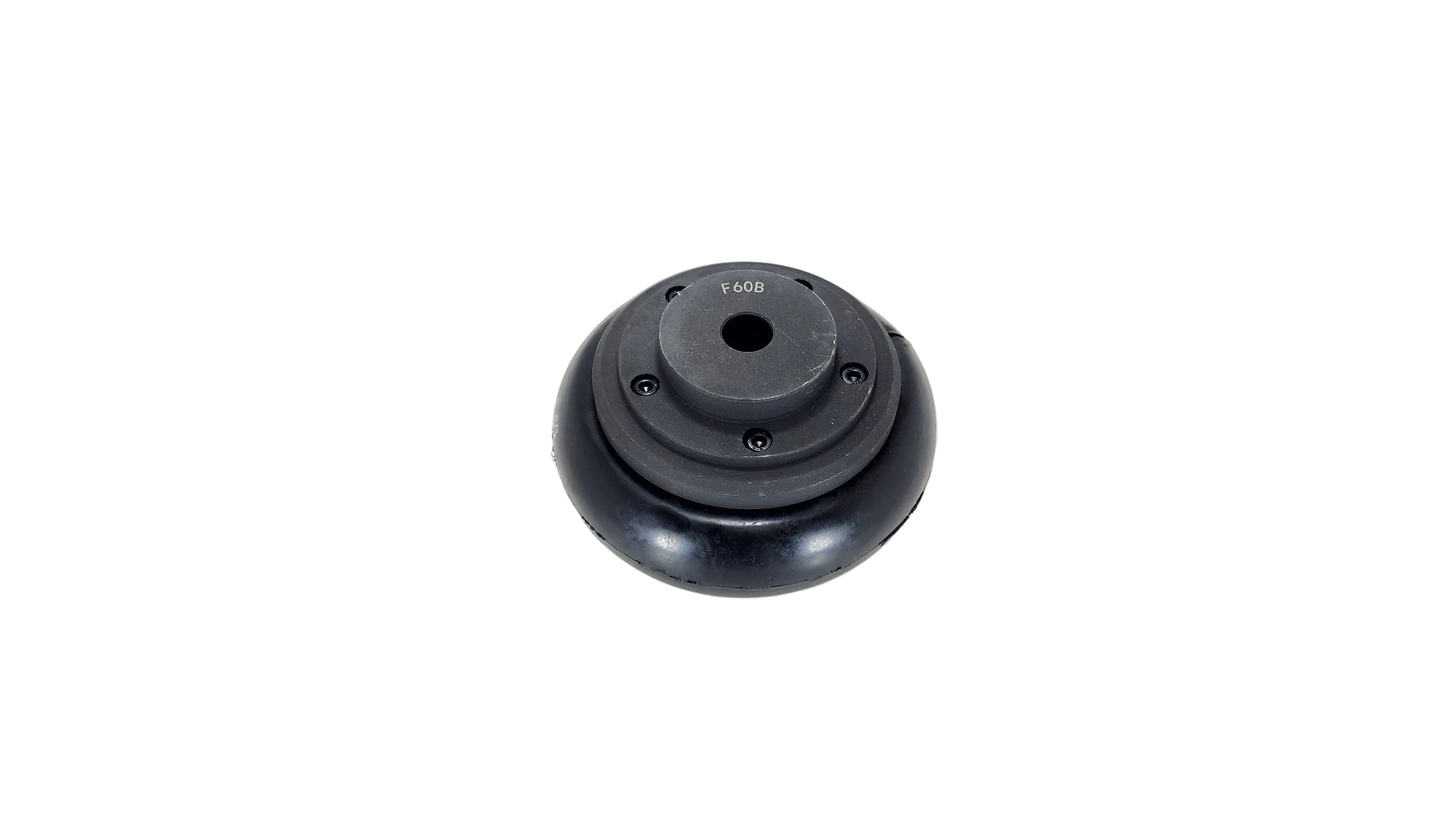

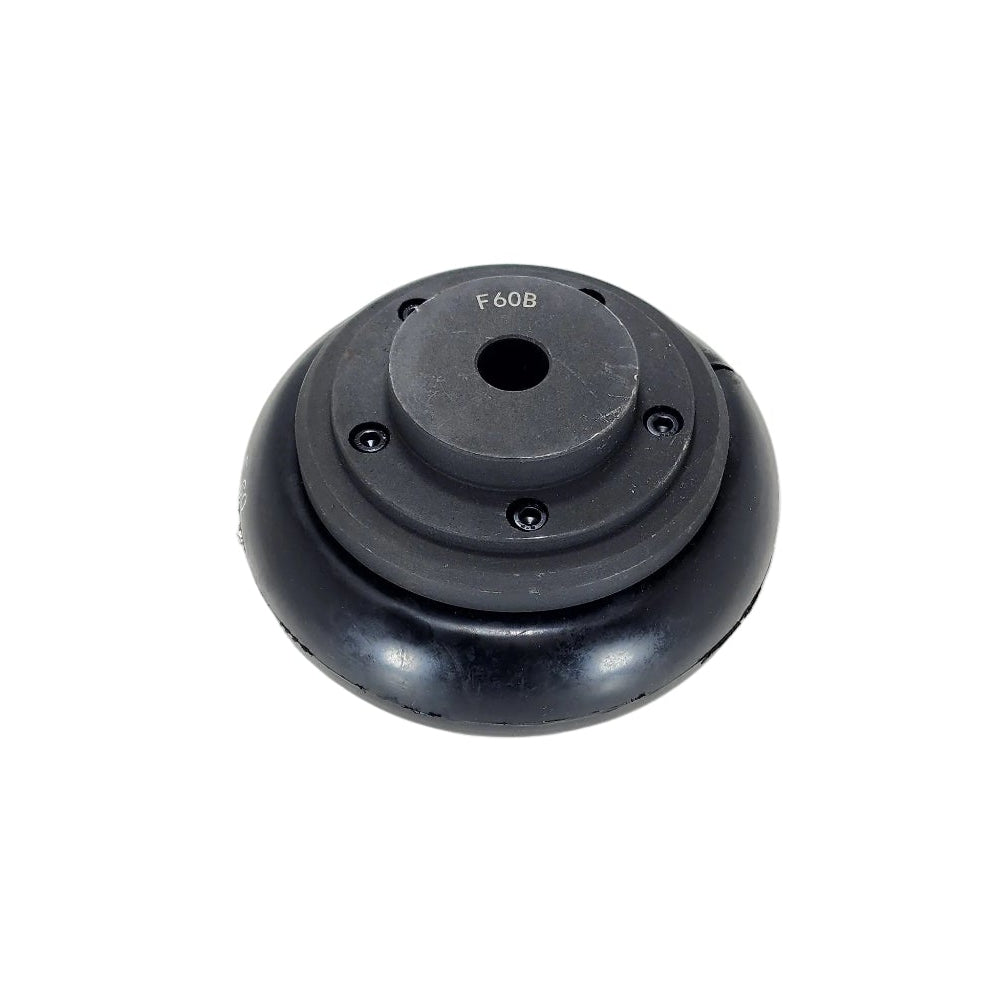

Tyre Coupling Pilot Bore assemblies are flexible shaft couplings designed to transmit power while accommodating misalignment, shock loads and vibration. The resilient tyre element helps protect connected equipment by reducing torsional shock and dampening vibration during operation. Supplied with pilot bore hubs for custom machining to suit the required shaft diameter, these couplings are commonly used on pumps, compressors, conveyors, fans and general industrial machinery. The split tyre design also allows quick element replacement with minimal downtime.
| Trade Name |
F060 Coupling |
| Bore Type | Pilot Bore |
| Type | Tyre Coupling |
| Model | F060 |
| Outside Diameter | 165.0mm |
| Overall Length | 112mm |
| Shaft Misalignment Type | Maximum misalignment: 4° angular, 1.6mm parallel, +/- 2.0mm end float |
| Maximum Speed | 4,000 rpm |
| Operating Temperature Range | -15°C to +50°C |
| Unit | Each |
| Material | Cast Iron with rubber element |
| Max Bore |
48mm |
| Nominal Torque |
106Nm |
