Product Description

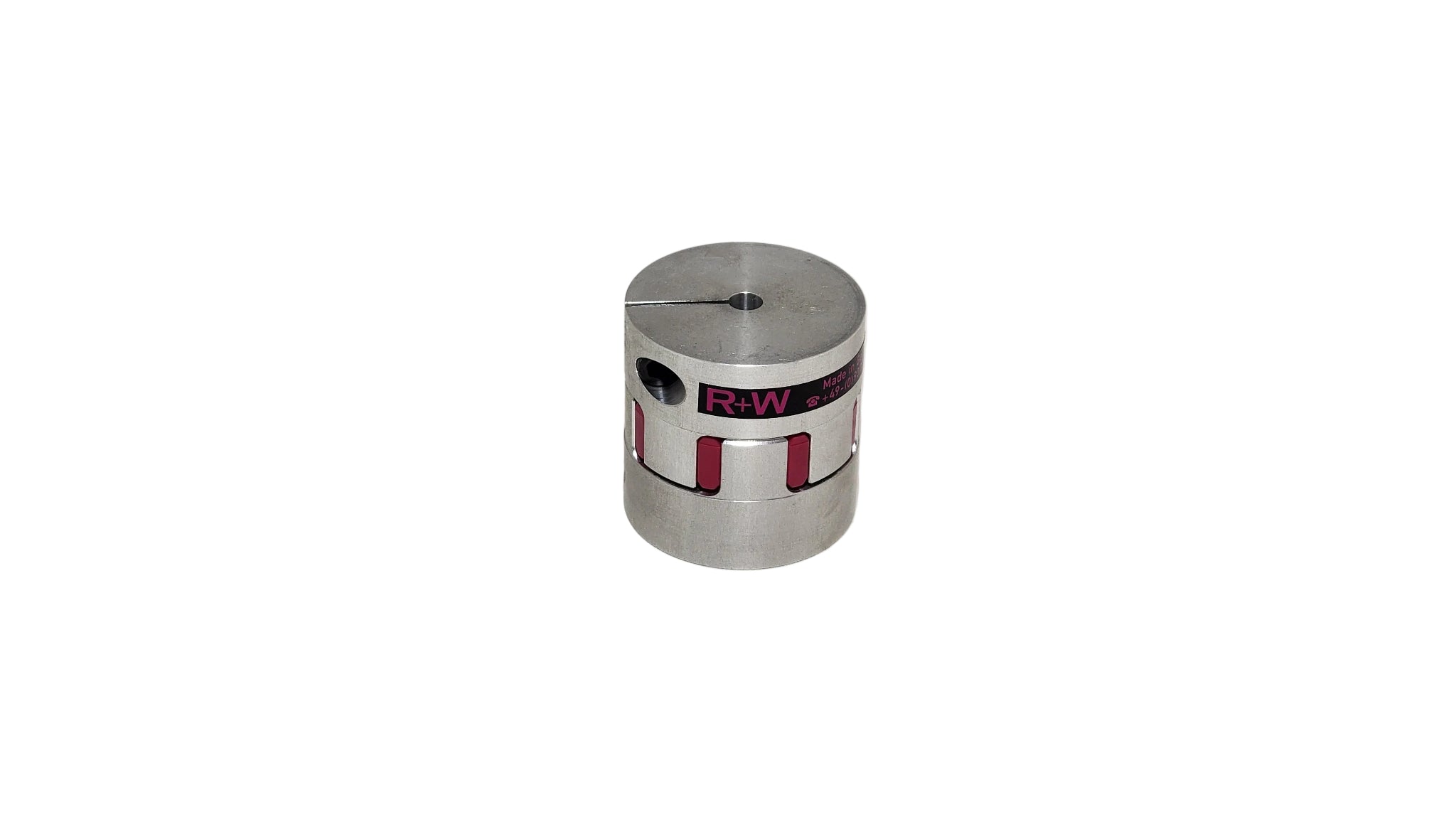

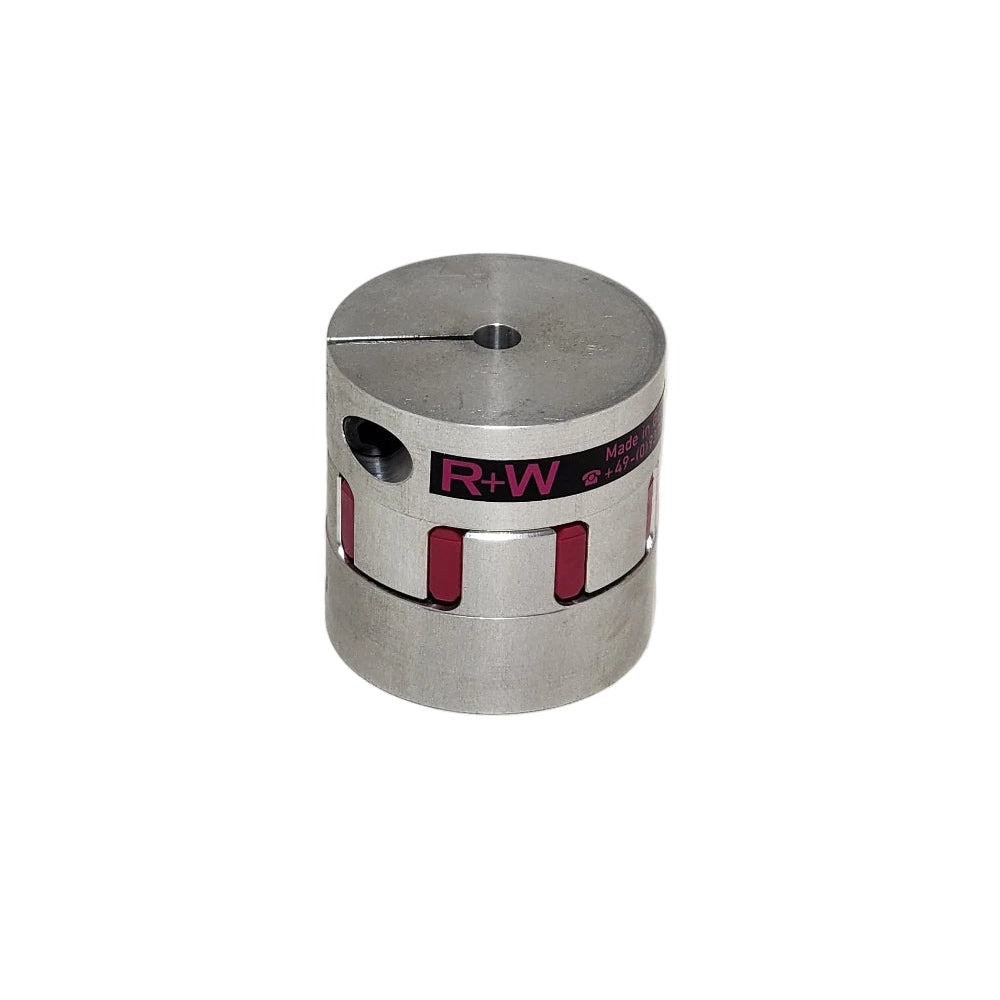

The R+W EKL Servomax backlash-free elastomer coupling offers a compact and lightweight solution for precision drive systems requiring accurate torque transmission and effective vibration damping. Utilising high-strength clamping hubs and a durable elastomer insert, the EKL provides backlash-free performance, smooth operation and reliable compensation of shaft misalignment. Ideal for space-constrained applications such as servo drives, linear actuators, automated machinery and packaging equipment, the EKL helps enhance system performance while reducing wear on connected components.
| Type | Complete coupling |
| Series / Model | EKL |
| Shaft Coupling Type | Precision elastomer coupling |
| Bore Size | 8mm each side |
| Bore Type | Pilot bore |
| Max Bore | 32mm each side |
| Outside Diameter | 56mm (57mm with screw head) |
| Overall Length | 58mm |
| Nominal Torque | 60Nm |
| Shaft Misalignment Type | Parallel, Angular, Axial |
| Max Misalignment | 1.5mm axial; 0.12mm lateral; 1° angular. |
| Operating Temperature Range | -30°C to 100°C |
| Material | Aluminium hubs, thermoplastic polyurethane (TPU) inserts |
| Brand | R+W |
| Unit | Each |
