Product Description

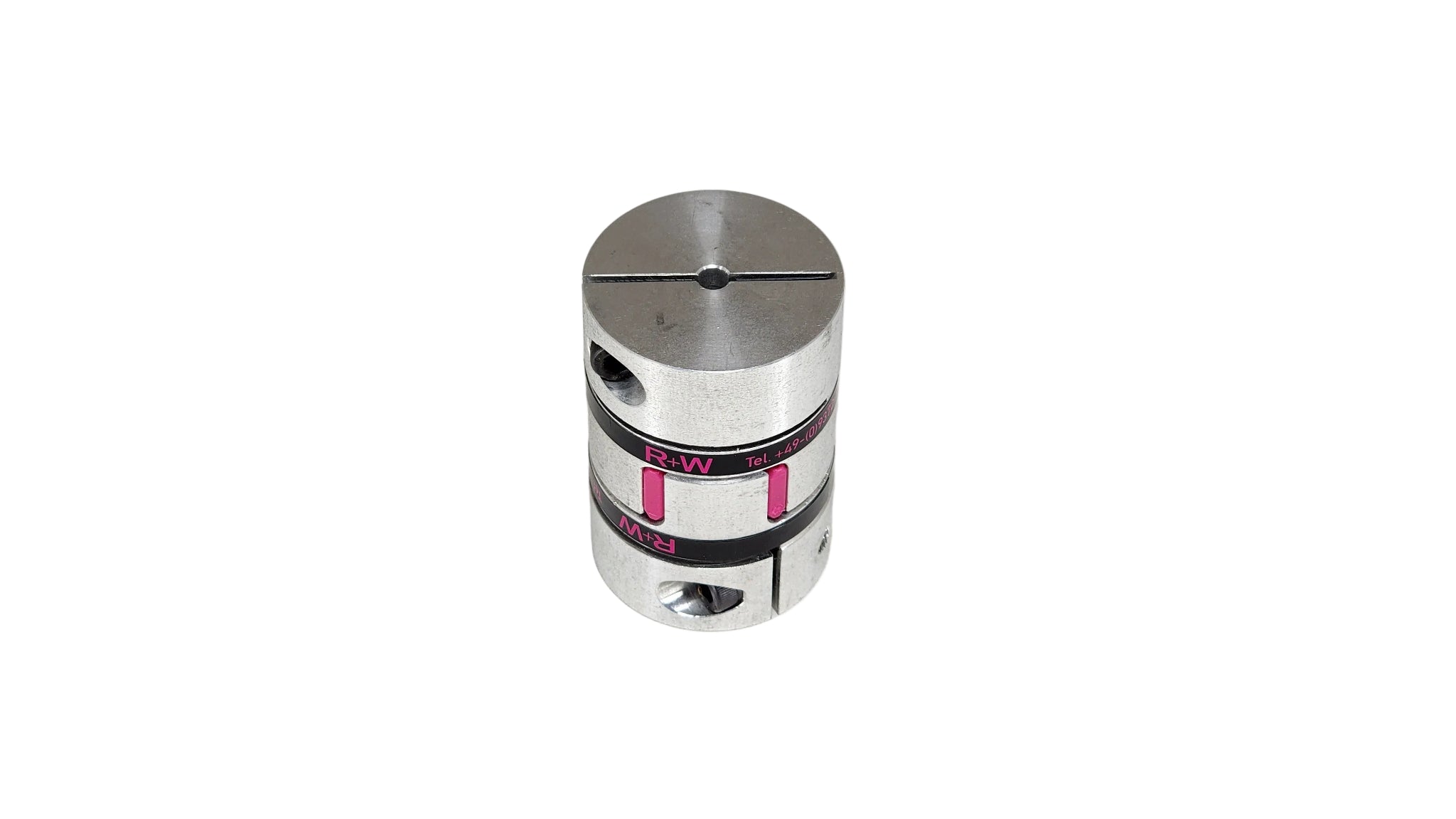

The R+W EK2 Servomax backlash-free elastomer coupling combines high torsional stiffness with exceptional vibration damping to deliver reliable power transmission in demanding motion control applications. Designed with split clamp hubs and a precision elastomer insert, the EK2 provides backlash-free operation, protects connected equipment from shock loads, and compensates for shaft misalignment while maintaining accurate positioning performance. Its maintenance-free construction and easy installation make it a dependable solution for servo drives, machine tools, robotics and industrial automation systems.
| Bore Size | 5mm each side |
| Bore Type | Pilot bore |
| Type | Complete coupling |
| Model | EK2 |
| Outside Diameter | 42mm (44.5mm with screw head) |
| Overall Length | 66mm |
| Shaft Coupling Type | Precision elastomer coupling |
| Shaft Misalignment Type | Parallel, Angular, Axial |
| Max Misalignment | 1.5mm axial; 0.1mm lateral; 1° angular. |
| Operating Temperature Range | -30°C to 100°C |
| Brand | R+W |
| Unit | Each |
| Material | Aluminium hubs, thermoplastic polyurethane (TPU) inserts |
| Max Bore |
25mm each side |
| Nominal Torque |
17Nm |
