Product Description

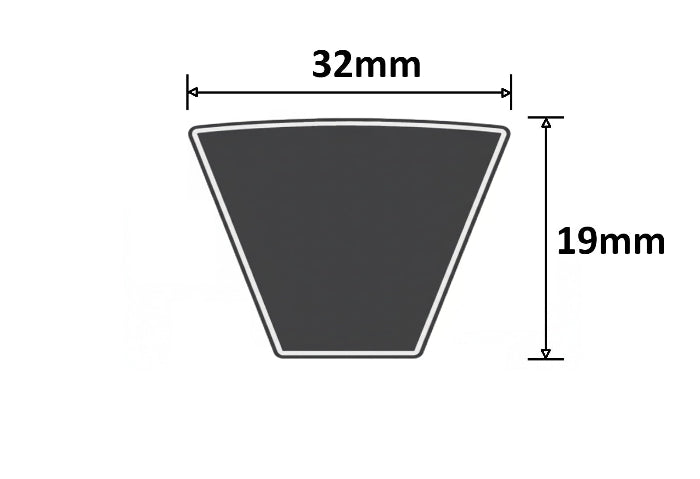

D Section V Belts have a nominal top width of 32mm and a nominal thickness of 19mm (actual dimensions may vary slightly). They are used in medium to heavy drive systems that require power transmission of 1 HP or greater.
| Belt Section | D |
| Type | Wrapped Classical V Belt |
| Width Imperial | 1.1/4in |
| Width Metric | 32mm |
| Inside Length Imperial | 249in |
| Inside Length Metric | 6325mm |
| Outside Length Imperial | 254in |
| Outside Length Metric | 6452mm |
| Thickness Imperial | 3/4in |
| Thickness Metric | 19mm |
| Min Pulley Diameter | 315mm (per ISO/DIN/RMA guidelines) |
| Number of Bands | 1 |
| Material | Rubber |
| Reinforcement Material | Polyester |
| Weight | 4.323 |
| Unit | Each |
