Product Description

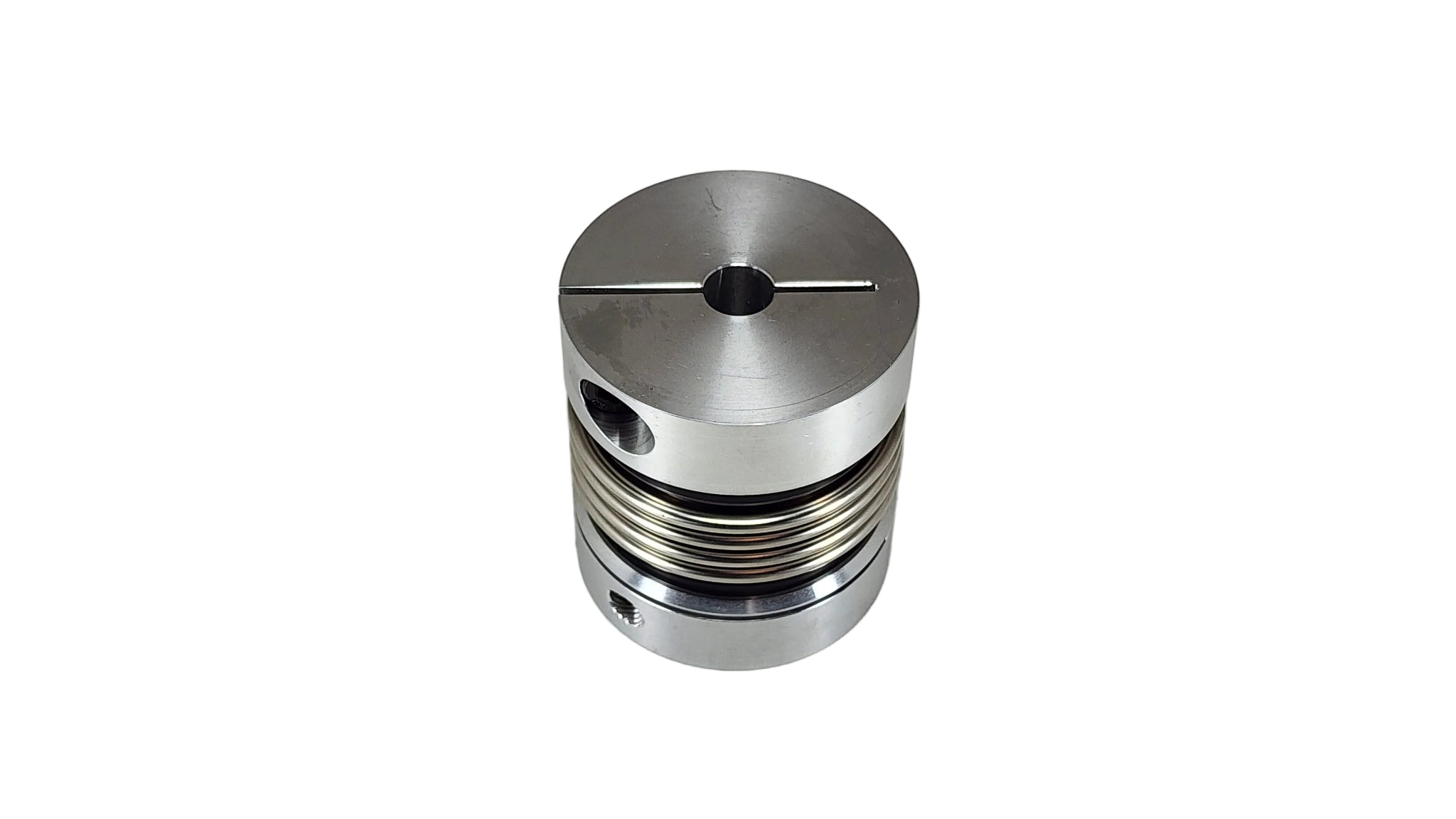

The R+W BKL torsionally stiff bellows coupling combines backlash-free torque transmission with a compact, lightweight design for precision motion control applications. Engineered with a high-quality metal bellows and clamping hub connection, the BKL offers excellent torsional stiffness, low rotational inertia and reliable compensation of shaft misalignment while maintaining accurate positioning and repeatability. Ideal for servo motors, encoders, linear drives and automated machinery, the BKL delivers maintenance-free operation, high dynamic performance and long service life in space-constrained installations.
| Bore Size | 16mm each side |
| Bore Type | Pilot bore |
| Type | Complete coupling |
| Model | BKL |
| Outside Diameter | 82mm |
| Overall Length | 92mm |
| Shaft Coupling Type | Precision bellows coupling |
| Shaft Misalignment Type | Parallel, Angular, Axial |
| Max Misalignment | 2mm axial; 0.2mm lateral; 1° angular. |
| Maximum Speed | 10,000 rpm |
| Operating Temperature Range | -30°C to 100°C |
| Brand | R+W |
| Unit | Each |
| Material | Aluminium hubs, stainless steel bellows |
| Max Bore |
42mm each side |
| Nominal Torque |
80Nm |
