Product Description

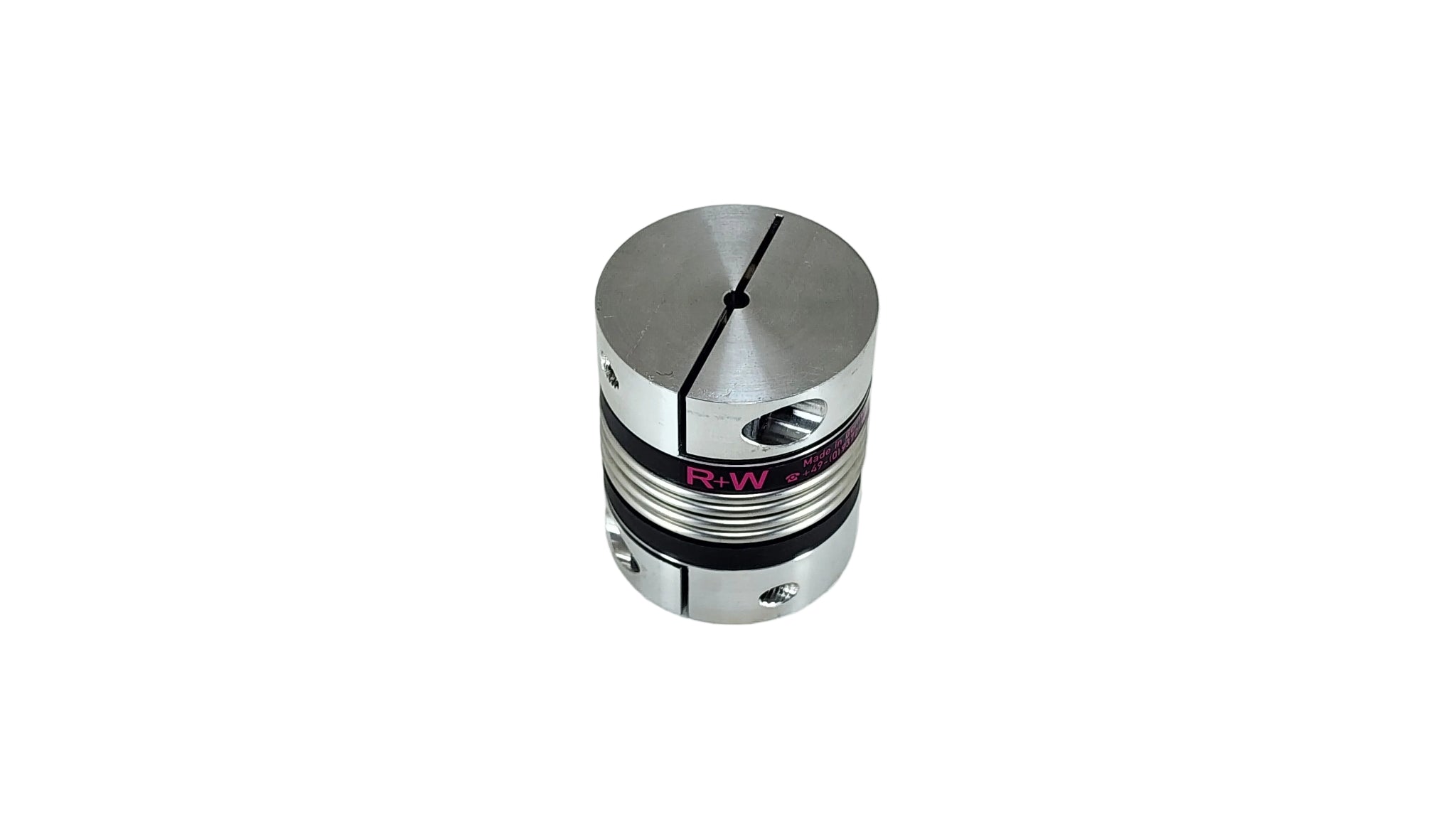

The R+W BK2 torsionally stiff bellows coupling is a high-performance precision coupling designed to deliver backlash-free torque transmission while compensating for angular, radial and axial shaft misalignment. Featuring a robust metal bellows and clamp hub design, the BK2 provides exceptional torsional rigidity, high accuracy and reliable operation in demanding servo drive, automation, robotics and motion control applications. Its compact construction, low inertia and maintenance-free design make it ideal for systems requiring precise positioning, repeatability and smooth power transmission at high speeds.
| Bore Size | 6mm each side |
| Bore Type | Pilot bore |
| Type | Complete coupling |
| Model | BK2 |
| Outside Diameter | 66mm |
| Overall Length | 83mm |
| Shaft Coupling Type | Precision bellows coupling |
| Shaft Misalignment Type | Parallel, Angular, Axial |
| Max Misalignment | 1.5mm axial; 0.2mm lateral; 1° angular. |
| Maximum Speed | 10,000 rpm |
| Operating Temperature Range | -30°C to 100°C |
| Brand | R+W |
| Unit | Each |
| Material | Aluminium hubs, stainless steel bellows. |
| Max Bore |
35mm each side |
| Nominal Torque |
60Nm |
