Product Description

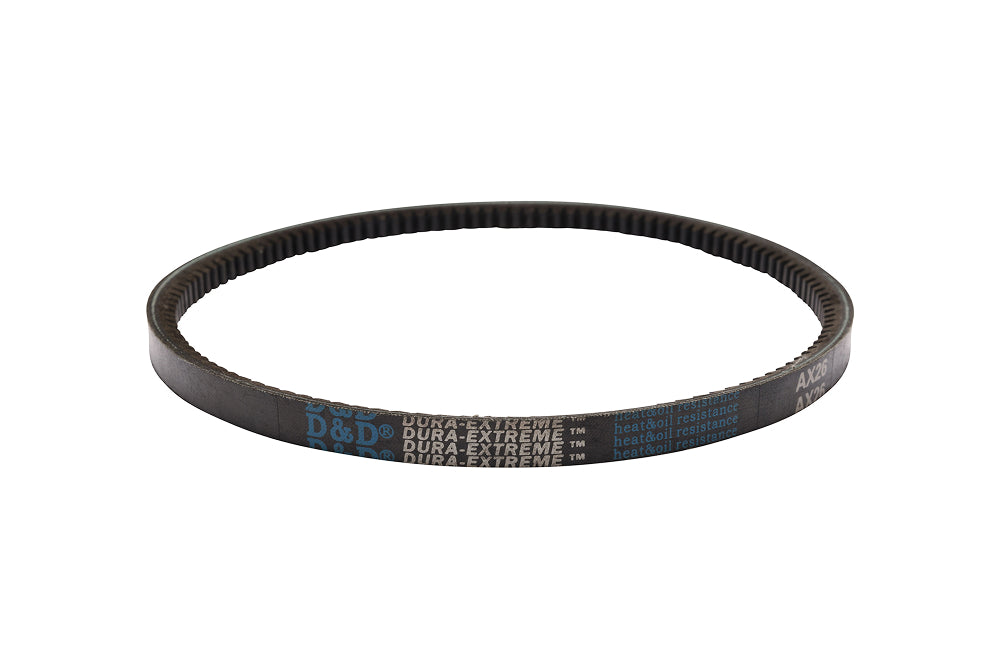

AX Section V Belts have a nominal top width of 13mm and a nominal thickness of 8mm (actual dimensions may vary slightly). More flexible than smooth V-belts, these have notches that allow them to bend around small-diameter pulleys and accommodate twists and turns on curved drives.
| Belt Section | AX |
| Type | Raw Edge Cogged Classical V Belt |
| Width Imperial | 1/2in |
| Width Metric | 13mm |
| Inside Length Imperial | 42in |
| Inside Length Metric | 1067mm |
| Outside Length Imperial | 44in |
| Outside Length Metric | 1118mm |
| Thickness Imperial | 5/16in |
| Thickness Metric | 8mm |
| Min Pulley Diameter | 75mm (per ISO/DIN/RMA guidelines) |
| Number of Bands | 1 |
| Material | Rubber |
| Reinforcement Material | Polyester |
| Weight | 0.115 |
| Unit | Each |
