Product Description

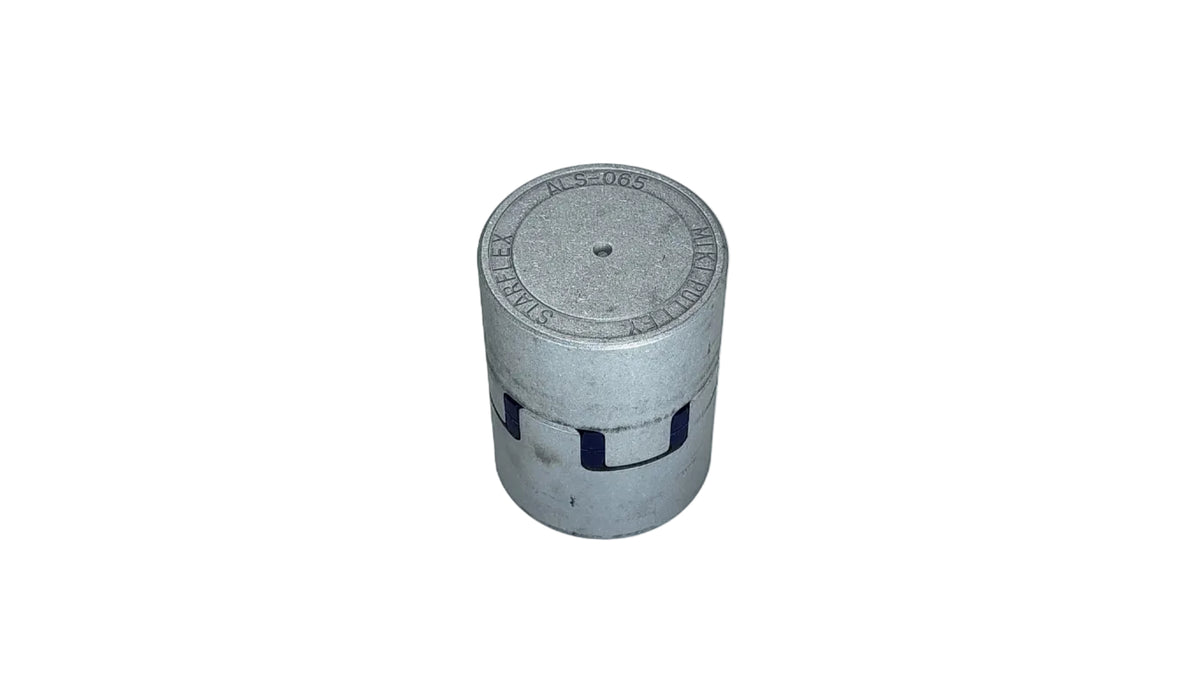

The MIKI Pulley ALS pilot bore jaw coupling is supplied complete with two pilot bore hubs and an ALS(B) blue polyurethane element, providing a reliable and versatile solution for industrial power transmission applications. The pilot bore hubs can be machined to suit specific shaft requirements, while the 97 JIS A blue element features a loose-fit design that delivers durable torque transmission and effective vibration damping for general-purpose drive systems where backlash-free operation is not essential. Suitable for motors, gearboxes, pumps, conveyors and other industrial machinery, the ALS coupling offers a simple, maintenance-friendly design with the flexibility to accommodate minor shaft misalignment.
| Type | Aluminium Jaw Coupling |
| Series / Model | ALS-065 |
| Bore Size | Pilot Bore |
| Max Bore | 38mm |
| Outside Diameter | 65mm |
| Overall Length | 90.0mm |
| Nominal Torque | 160.0Nm |
| Max Speed | 7,400 rpm |
| Max Misalignment | 1° angular, 0.25mm parallel (radial), -0.6 to +1.5mm axial. |
| Operating Temperature Range | -30°C to +80°C |
| Material | Aluminium |
| Brand | MIKI Pulley |
| Unit | Each |
