Product Description

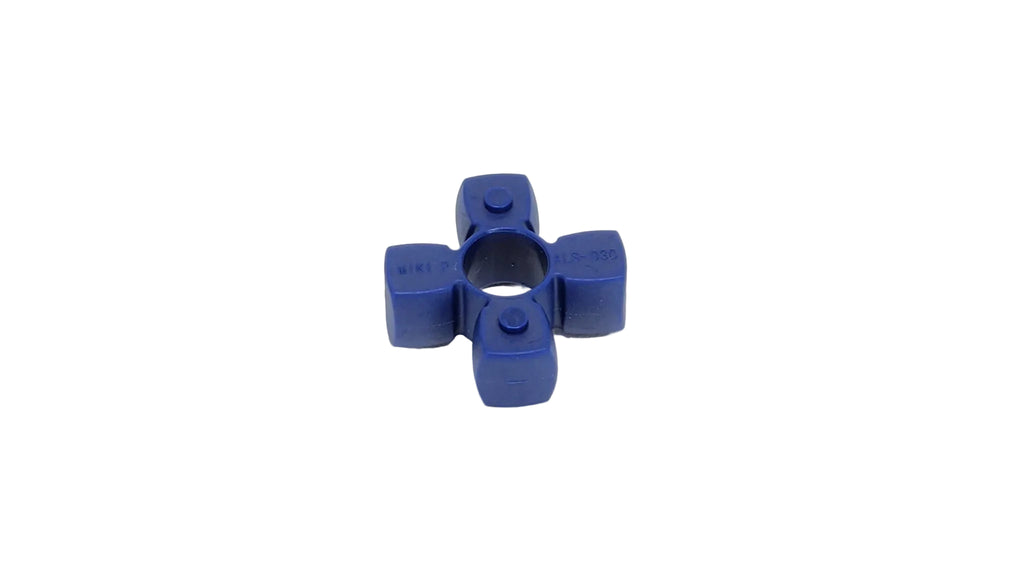

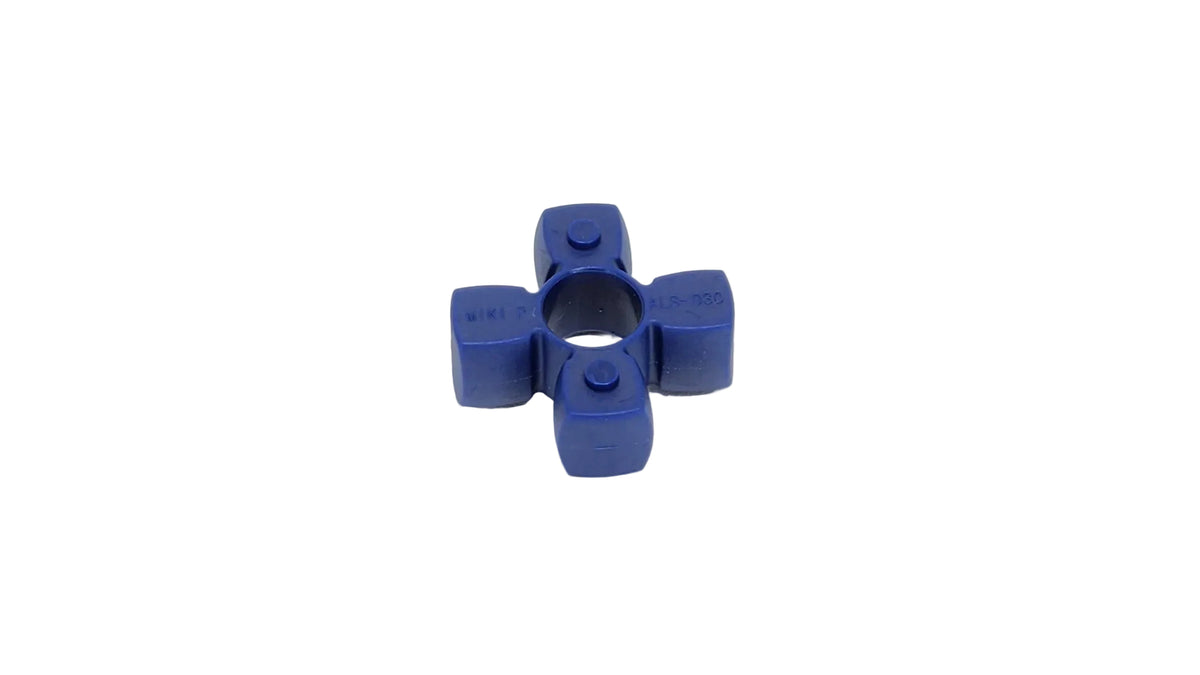

97 JIS A polyurethane element with a loose-fit design for general power transmission applications. Provides durable torque transmission and easier assembly where backlash-free operation is not required.
| Type | ALS Element Blue |
| Series / Model | ALS-030 |
| Compatible with | ALS-030 MIKI Starflex Coupling |
| Nominal Torque | 12.5Nm |
| Max Speed | 15,900 rpm |
| Max Misalignment | 1° angular, 0.17mm parallel (radial), -0.2 to +1.0mm axial. |
| Operating Temperature Range | -30°C to +80°C |
| Material | Polyurethane |
| Brand | MIKI Pulley |
| Unit | Each |
