Product Description
XL (Extra Light) belts feature a 0.2in pitch and are suited for light-duty synchronous drives. They offer reliable performance in applications like printers, plotters, and light automation systems.
| Belt Section | XL (Extra Light) |
| Type | Classical Timing Belt |
| Tooth Profile | Trapezoidal |

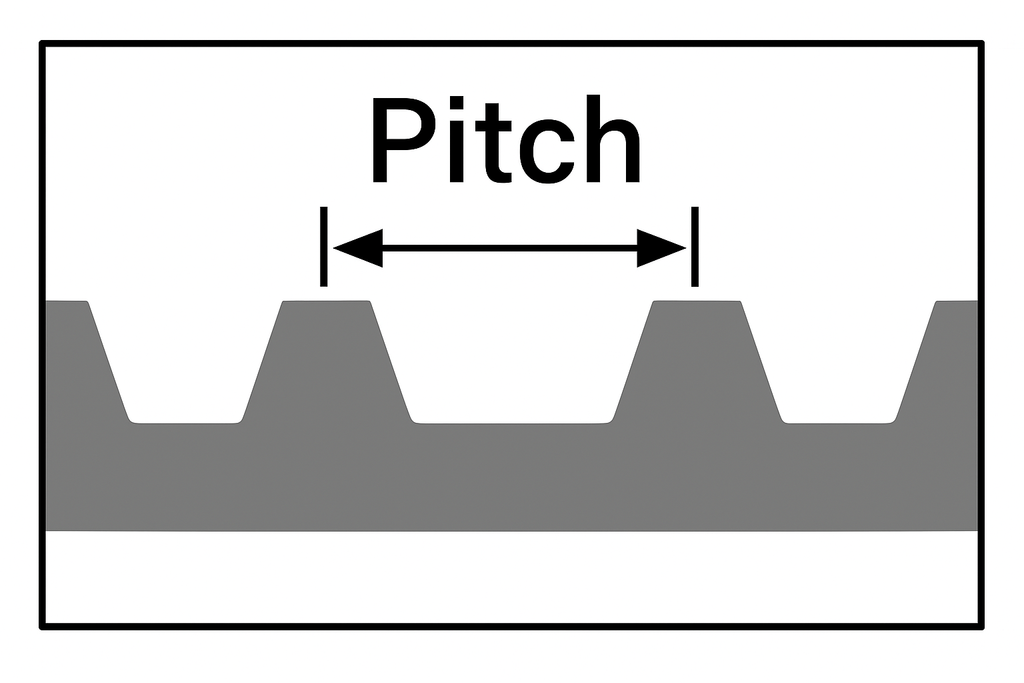

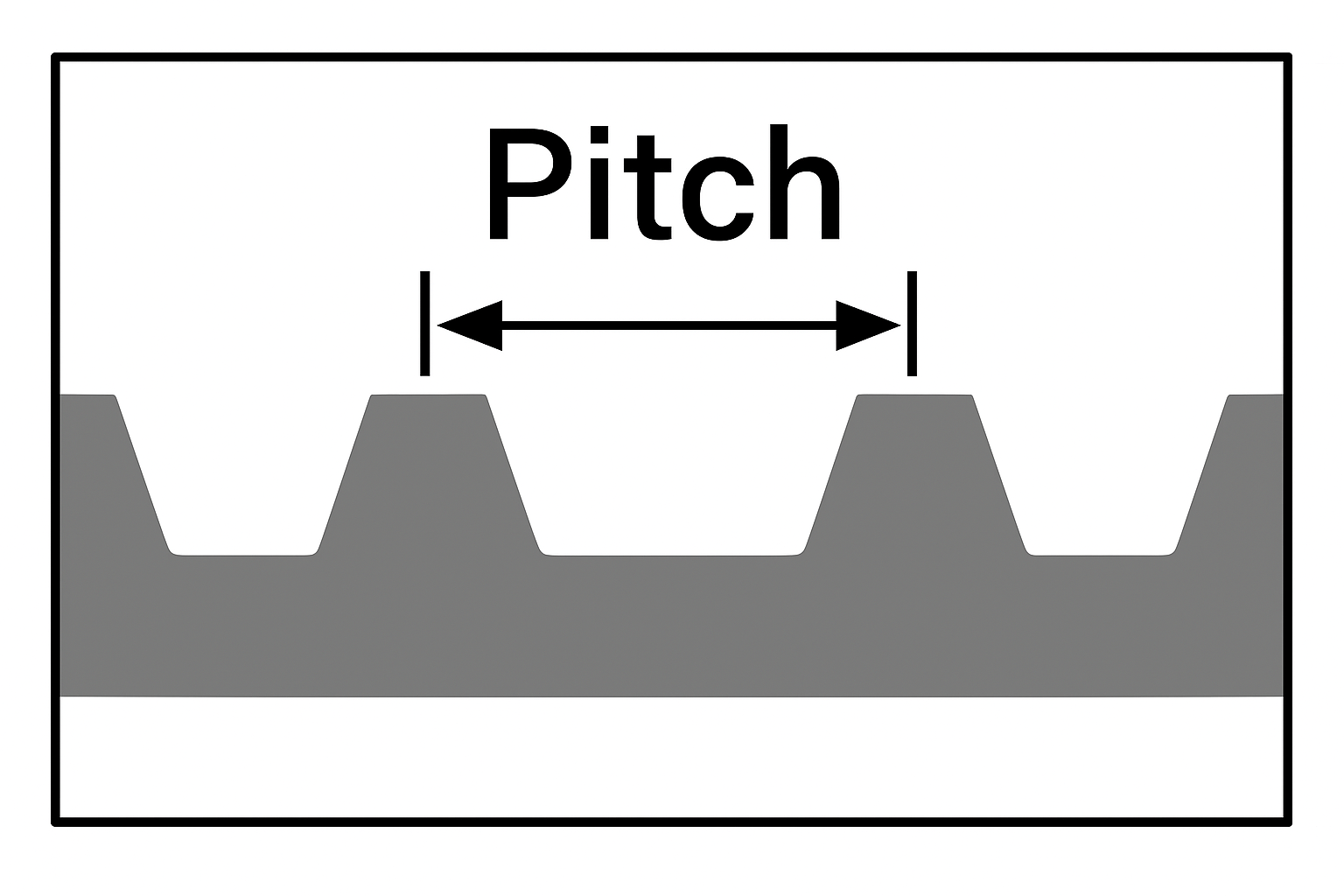

| Pitch Imperial | 0.2in |
| Width Imperial | 0.37in |
| Length Imperial | 9.6in |
| Number of Teeth | 48 |
| Max Speed | 8,000 rpm |
| Operating Temperature Range | -30°C to +80°C |
| Material | Neoprene with fibreglass cords |
| Unit | Each |
