Product Description

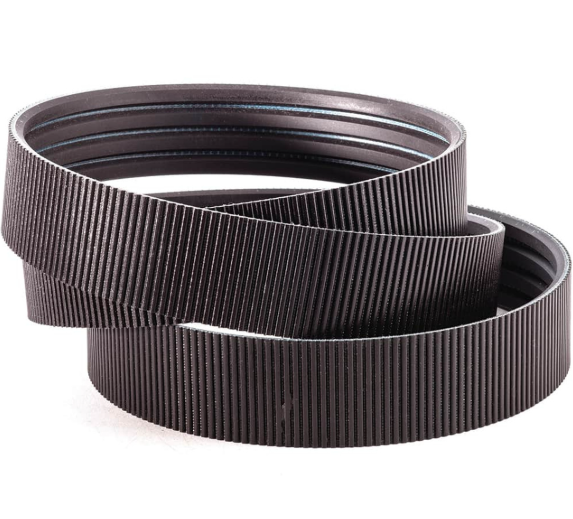

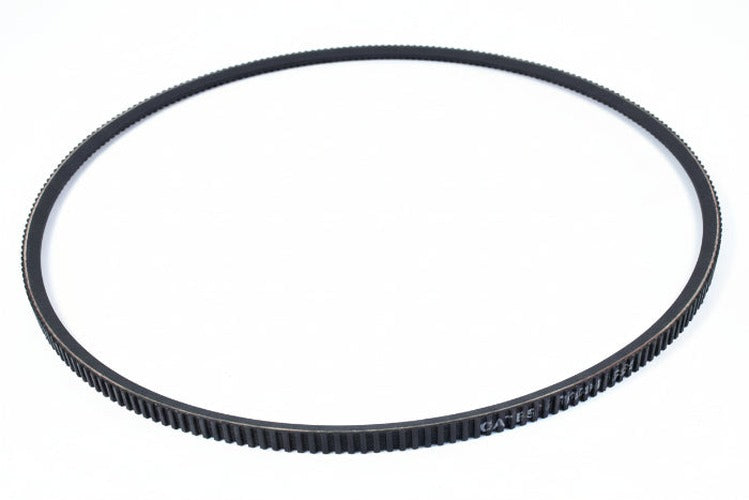

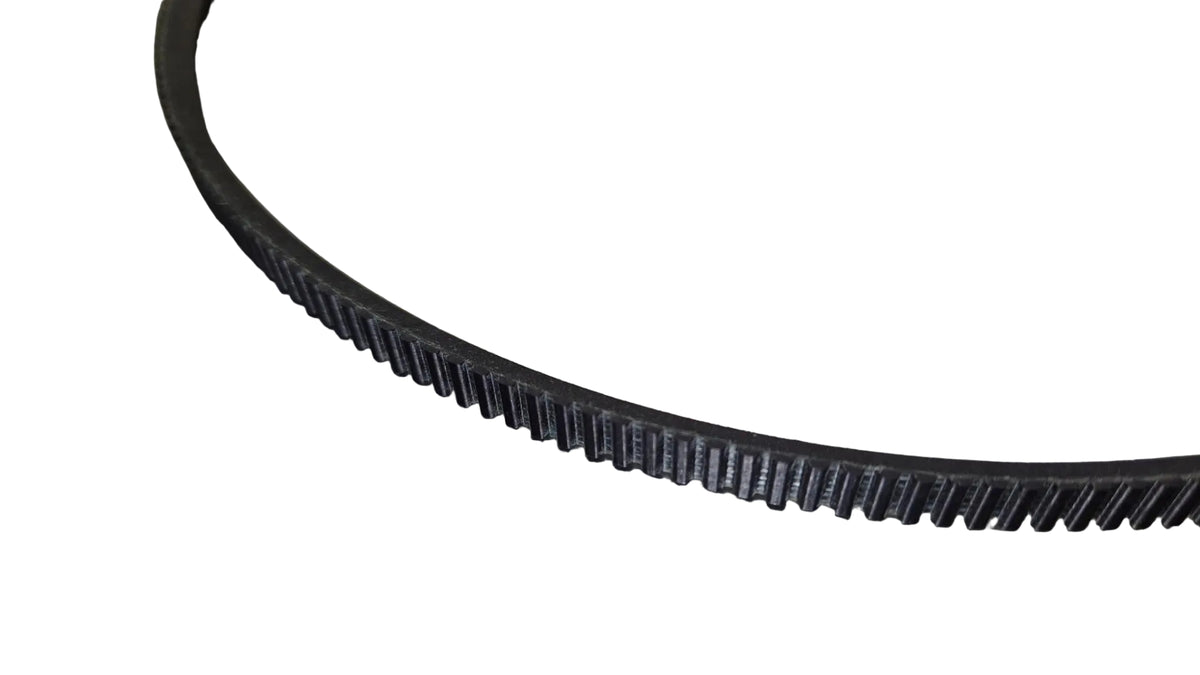

Polyflex® belts are compact, high-strength V belts (3-11mm top width) designed for high power transmission and high speed ratios. Ideal for very small pulleys and compact, high-speed drives, they deliver smooth, reliable performance in space restricted applications such as lathes, milling machines, woodworking and metalworking spindles, small blowers, and precision equipment.
| Belt Section | 3M |
| Type | Polyflex Belt |
| Width Imperial | 0.1in |
| Width Metric | 3mm |
| Pitch (Effective) Length Imperial | 21.5in |
| Pitch (Effective) Length Metric | 545mm |
| Thickness Metric | 2.28mm |
| Operating Temperature Range | -54°C to +85°C |
| Number of Bands | 1 |
| Material | Polyurethane |
| Reinforcement Material | Polyester tensile cords |
| Brand | Gates |
| Unit | Each |
