Product Description

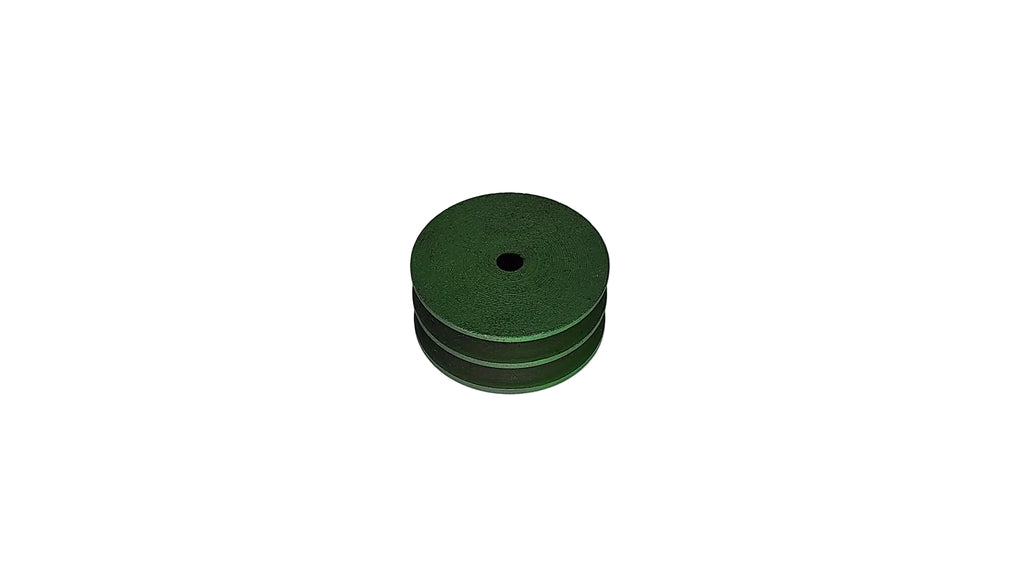

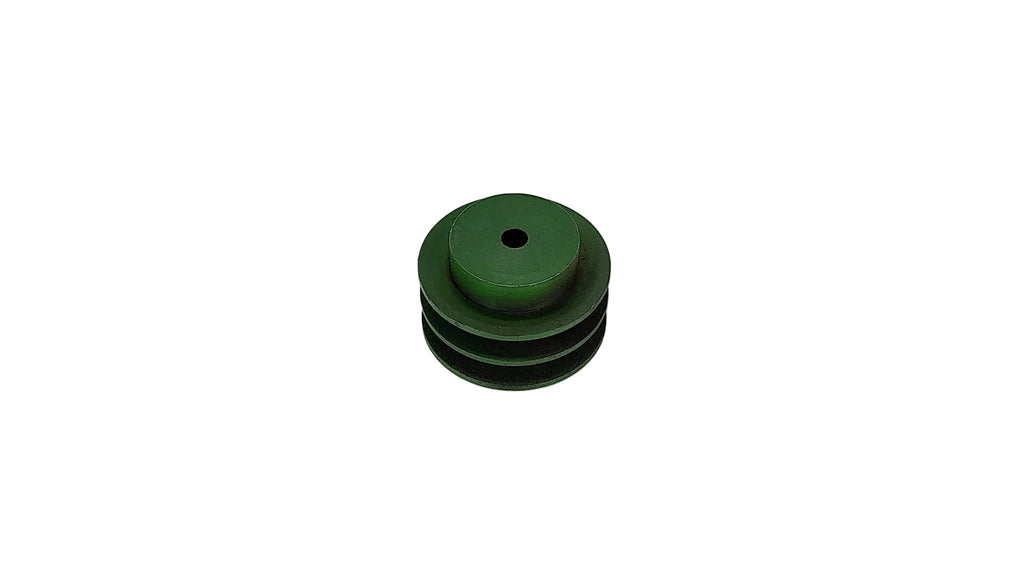

Pilot Bore Cast Iron V pulleys have an unfinished, undersized bore that requires machining to match a specific shaft diameter. This allows for customisation based on application needs. They do not come with pre-machined keyways or set screws, enabling precise modification for secure installation. They are constructed of cast iron which has good wear resistance and absorbs heat.
| Type | Cast Iron V Pulley |
| Bore Size | Pilot Bore |
| Outside Diameter Imperial | 2.88in |
| Outside Diameter Metric | 73mm |
| Pitch Diameter Imperial | 2.78in |
| Pitch Diameter Metric | 71mm |
| Number of Grooves | 2 |
| Boss Diameter | 50mm |
| Boss Length | 15mm |
| Overall Width | 46mm |
| For Belt Sections | A, AX, SPA |
| For Belt Types | Standard, Cogged |
| Material | Cast Iron |
| Weight | 0.85 kg |
| Unit | Each |
