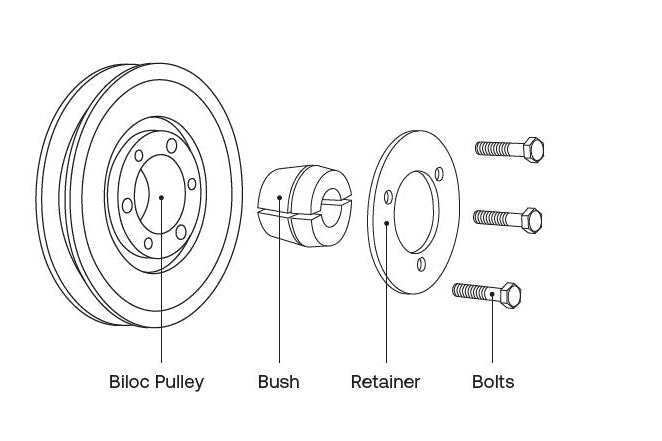

Ordering a Biloc pulley is straightforward. Every Biloc assembly consists of:
-
- A pulley
- A bush
- A retainer kit
The pulley, bush and retainer are all sold separately, allowing you to build the exact assembly you need.
Home Page > Pulleys & Bushes Collection > Biloc Pulleys
Step 1: Choose Your Pulley
Start by selecting the pulley size from our Biloc pulley range.
Biloc pulley sizes are identified by their A pitch diameter which refers to the diameter of the pulley where the A belt runs. If you want, you can also filter by the outside diameter of the pulley. Take note of whether the pulley takes a number 1 or number 2 bush.
Step 2: Select the Correct Bush
Once you've chosen your pulley, select the bush that matches your shaft diameter.
Shop Biloc Bushes here.
Note:
- #1 bushes suit shafts up to 28mm.
- #2 bushes suit shafts up to 42mm.
You can use the filters on the bush collection page to select your shaft size.
Step 3: Add a Retainer Kit
Single Biloc assembly requires a retainer kit. Find the range here.
Choose:
- Retainer Kit for #1 Bush
- Retainer Kit for #2 Bush
The retainer kit includes the retainer plate, bolts and washers required to lock the assembly together. If you are joining two pulleys together to create a double pulley you will need to order the long bolts instead of the retainer. Find the long bolts here.
Why Choose Biloc?
The Biloc system eliminates the need for boring, keyways and grub screws. The pulley is simply assembled onto the shaft using the taper bush and retainer system. Installation takes only minutes using standard hand to tools. See article on Biloc Pulleys: Making Pulley Installation Easy
Not Sure What You Need?
Send us:
- A photo of the pulley
- The outside diameter
- The number of grooves
- The bush size (if visible)
- The shaft diameter
Our team can help identify the correct Biloc pulley, bush and retainer ring and make sure you get the right replacement the first time.
