Product Description

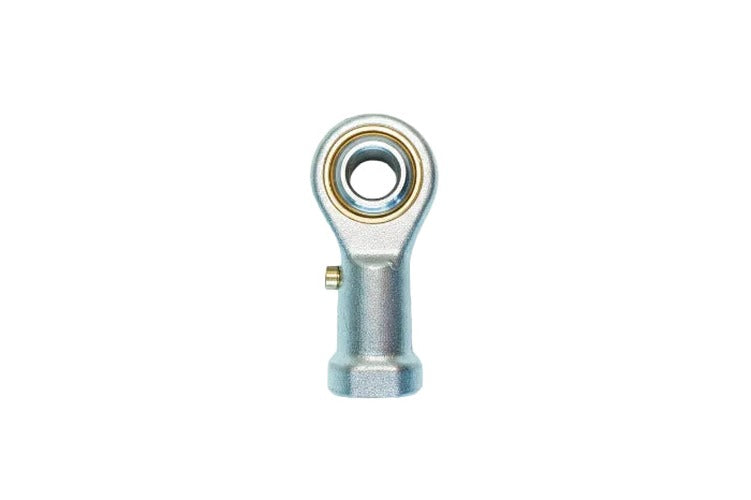

Rod Ends are mechanical components used to connect rods to other parts, providing smooth motion and reliable articulation. Featuring a spherical ball within a housing, they allow rotational movement while handling both axial and radial loads. Rod ends are commonly used in automotive, industrial, and aerospace applications for precision movement and durability.
| Type | Rod End |
| Series / Model | SPHS16/F1 |
| Inside Diameter | 16mm |
| Head Diameter | 38mm |
| Head Width | 21mm |
| Overall Length | 83mm |
| Thread Size | M16x1.5 |
| Thread Direction | Right |
| Thread Gender | Female |
| Thread Length | 33mm |
| Material | Body: Stainless Steel; Sliding contact surfaces: Steel/Brass |
| Unit | Each |
