Product Description

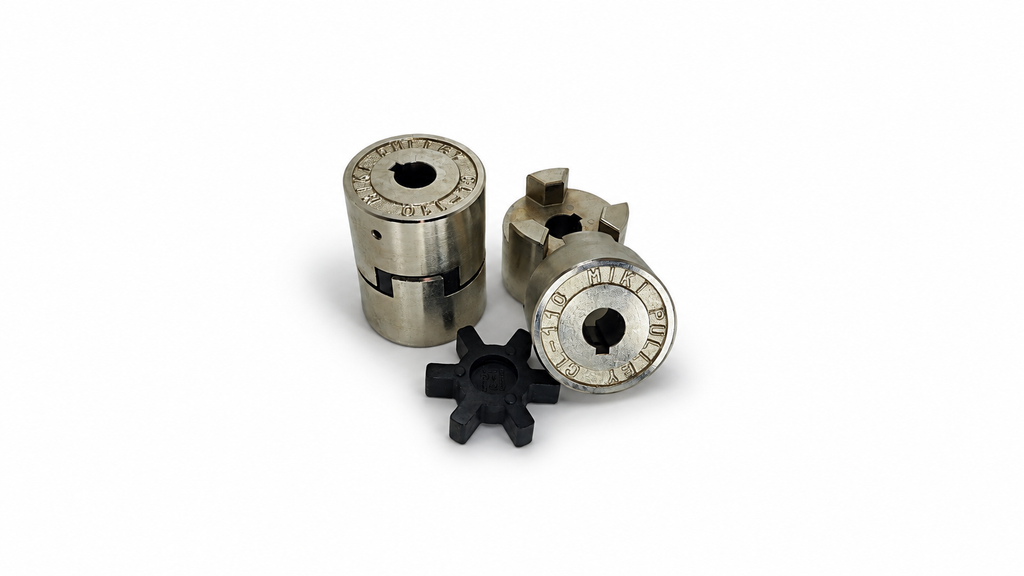

The MIKI Pulley CL-110 is a heavy-duty flexible jaw coupling suitable for use with electric motors, gearboxes, pumps, conveyors, packaging machinery and other industrial equipment. Consisting of robust cast iron hubs with a corrosion-resistant yellow passivated finish, this coupling is built to transmit torque while absorbing shock loads, vibration and minor shaft misalignment, helping to reduce stress and wear on connected equipment. Supplied complete with a replaceable Lovejoy L-110 compatible elastomer spider, the CL-110 features 25mm bores with 8mm keyways and threaded grub screw holes on both hubs for secure shaft retention.
| Type | Cast Iron Jaw Coupling |
| Series / Model | CL110 |
| Bore Size | 25mm each side |
| Keyway Width | 8mm x 4mm |
| Max Bore | 48mm |
| Outside Diameter | 85mm |
| Overall Length | 110mm |
| Nominal Torque | 50Nm |
| Max Speed | 5,000 rpm |
| Max Misalignment | 1° angular, 0.30mm parallel (radial), 0 to +0.7mm axial. |
| Material | Cast Iron with yellow passivated corrosion-resistant coating |
| Brand | MIKI Pulley |
| Unit | Each |
