Product Description

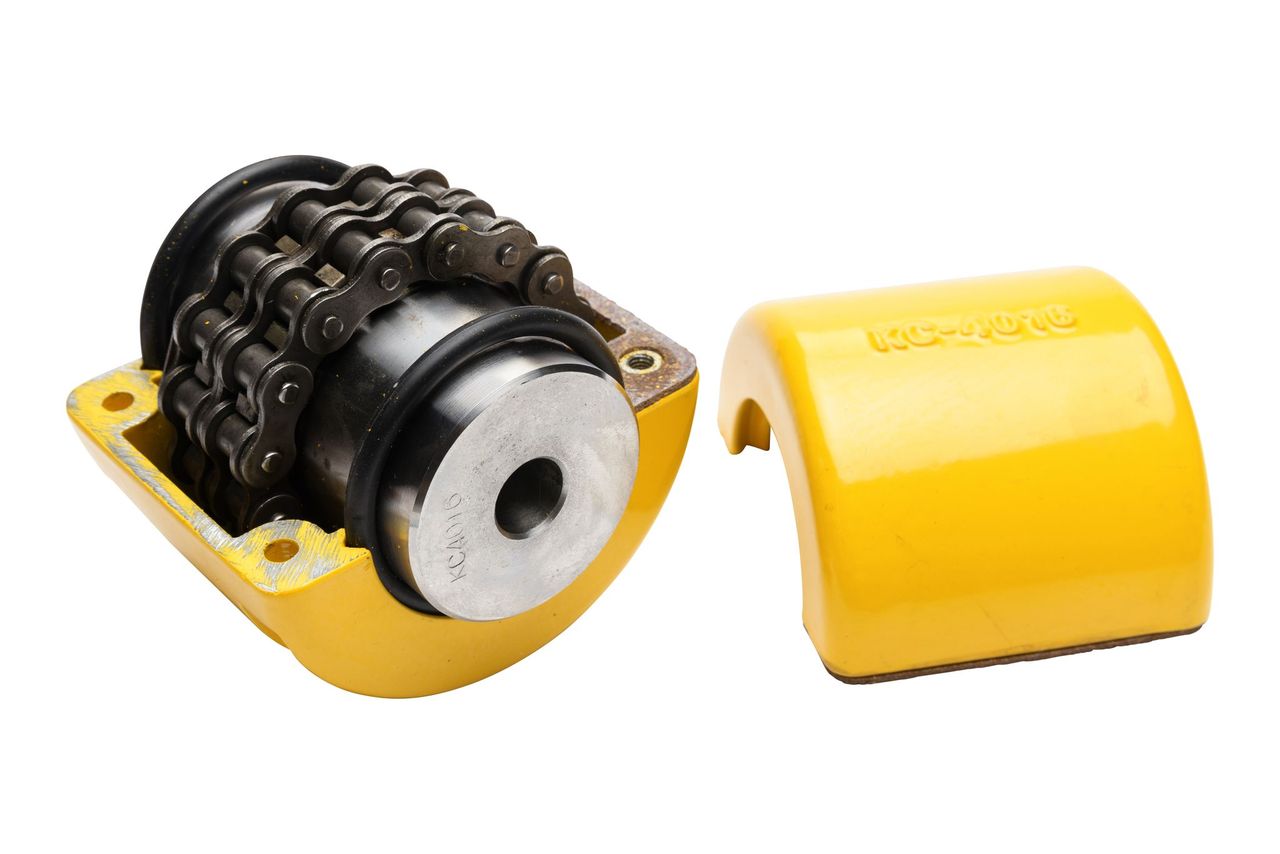

Robust couplings designed to transmit torque between two shafts while compensating for slight misalignments. Featuring high torque capacity, easy installation, and durable construction, they are ideal for heavy-duty industrial applications and reliable power transmission.
| Type | Chain Coupling |
| Series / Model | 6022 |
| Shaft Coupling Type | Flexible |
| Bore Size | Pilot bore |
| Max Bore | 75mm |
| Boss Diameter | 110mm |
| Chain Size | ASA60-2 |
| Outside Diameter | 168mm |
| Overall Length | 123mm |
| Nominal Torque | 2400Nm |
| Shaft Misalignment Type | Parallel, Angular |
| For Motion Type | Continuous |
| Material | Steel |
| Unit | Each |
