Product Description

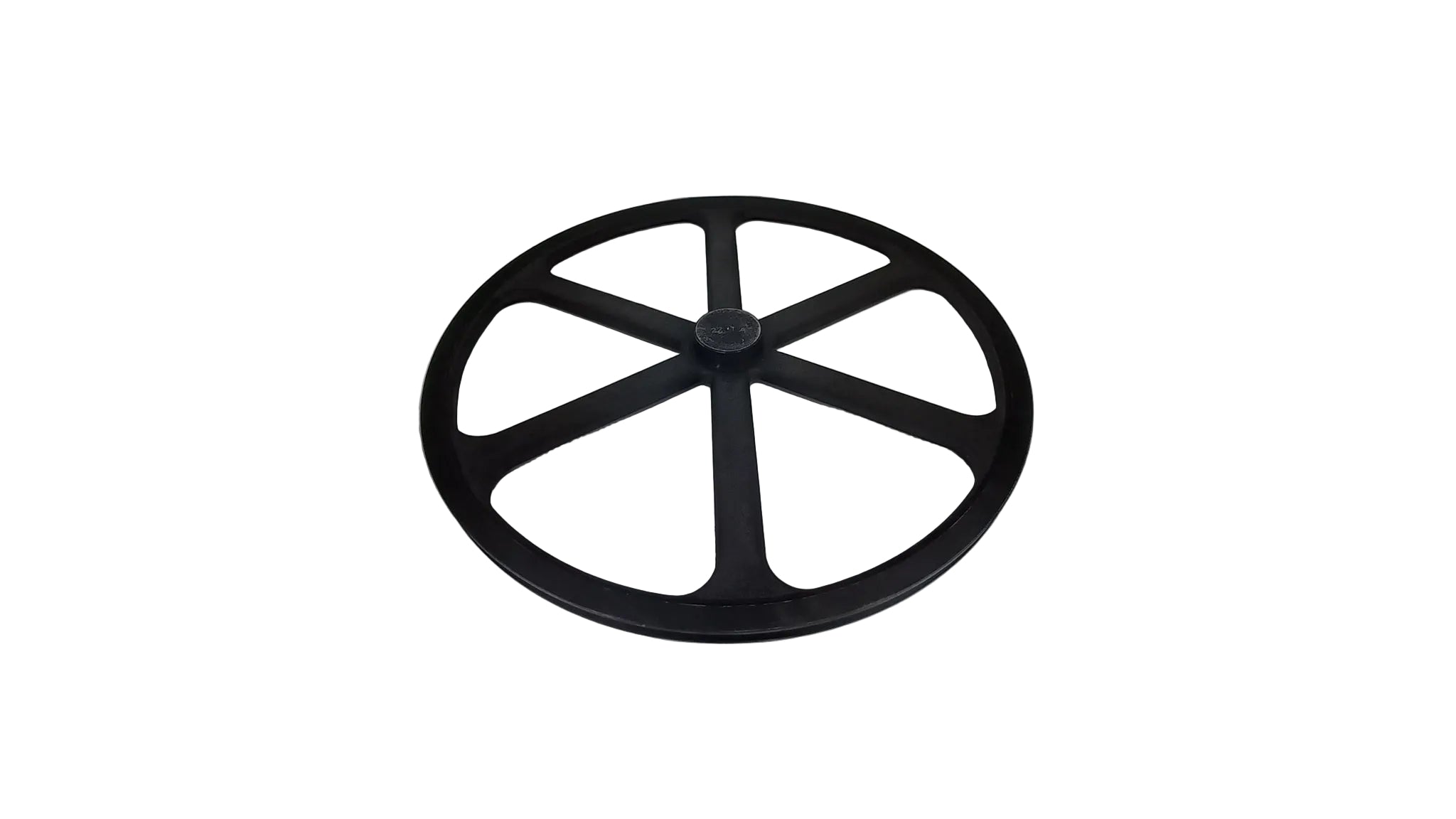

Pilot Bore or Blank Cast Iron V pulleys have an unfinished, undersized bore (or no through bore) requiring machining to match a specific shaft diameter. This allows for customisation based on application needs. They do not come with pre-machined keyways or set screws, enabling precise modification for secure installation. They are constructed of cast iron which has good wear resistance and absorbs heat.
| Type | Cast Iron V Pulley |
| Bore Size | Blank |
| Outside Diameter Imperial | 22in |
| Outside Diameter Metric | 559mm |
| Pitch Diameter Imperial | 21.9in |
| Pitch Diameter Metric | 556mm |
| Number of Grooves | 1 |
| Boss Diameter | 65mm |
| Boss Length | 20mm |
| Overall Width | 38mm |
| For Belt Sections | A, AX, SPA |
| For Belt Types | Standard, Cogged |
| Material | Cast Iron |
| Weight | 9.55 kg |
| Unit | Each |
