Product Description

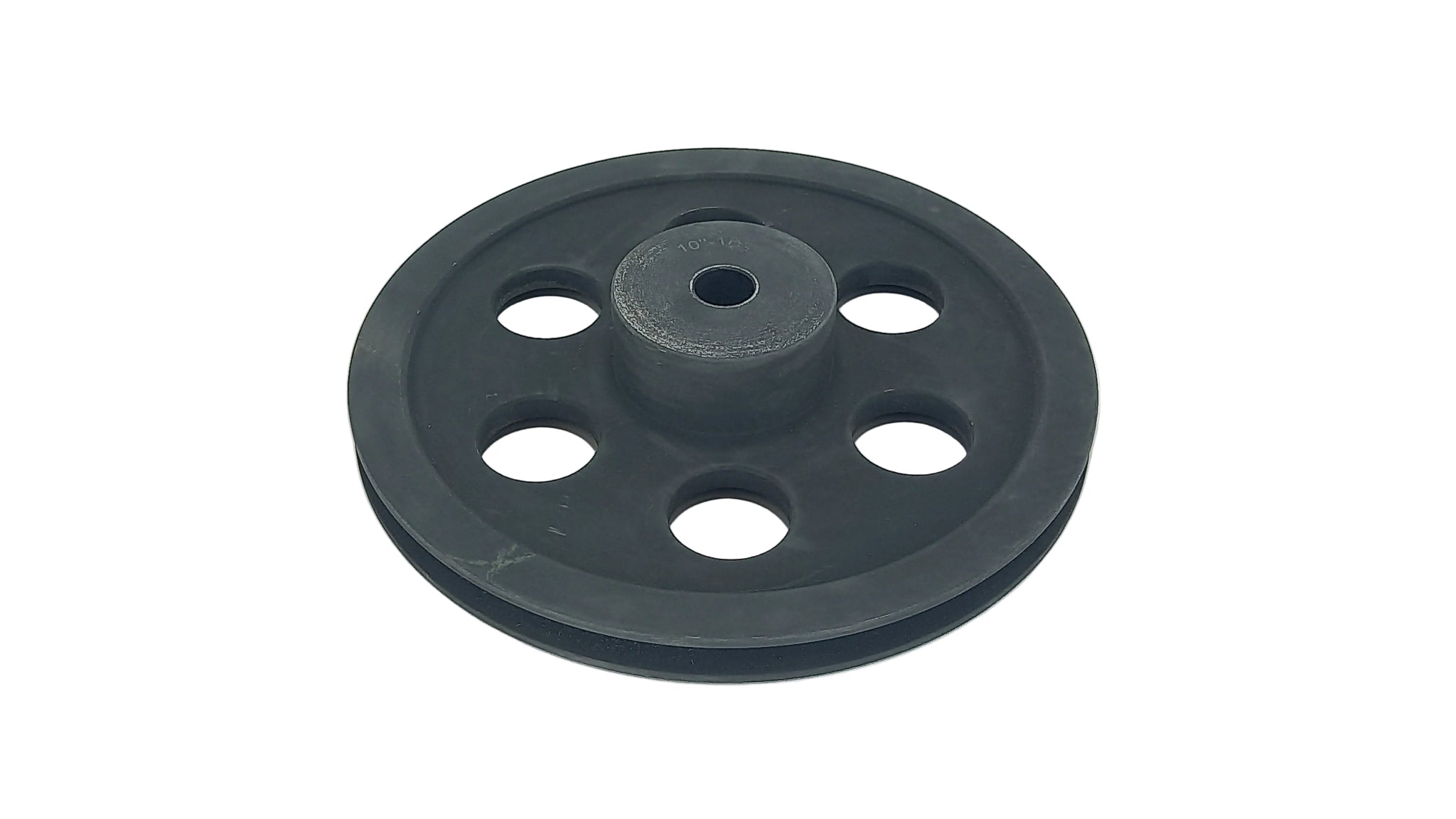

Pilot Bore Cast Iron V pulleys have an unfinished, undersized bore that requires machining to match a specific shaft diameter. This allows for customisation based on application needs. They do not come with pre-machined keyways or set screws, enabling precise modification for secure installation. They are constructed of cast iron which has good wear resistance and absorbs heat.
| Type | Cast Iron V Pulley |
| Bore Size | Pilot Bore |
| Outside Diameter Imperial | 10in |
| Outside Diameter Metric | 254mm |
| Pitch Diameter Imperial | 9.9in |
| Pitch Diameter Metric | 251mm |
| Number of Grooves | 1 |
| Boss Diameter | 75mm |
| Boss Length | 32mm |
| Overall Width | 51mm |
| For Belt Sections | A, AX, SPA |
| For Belt Types | Standard, Cogged |
| Material | Cast Iron |
| Weight | 4.80 kg |
| Unit | Each |
