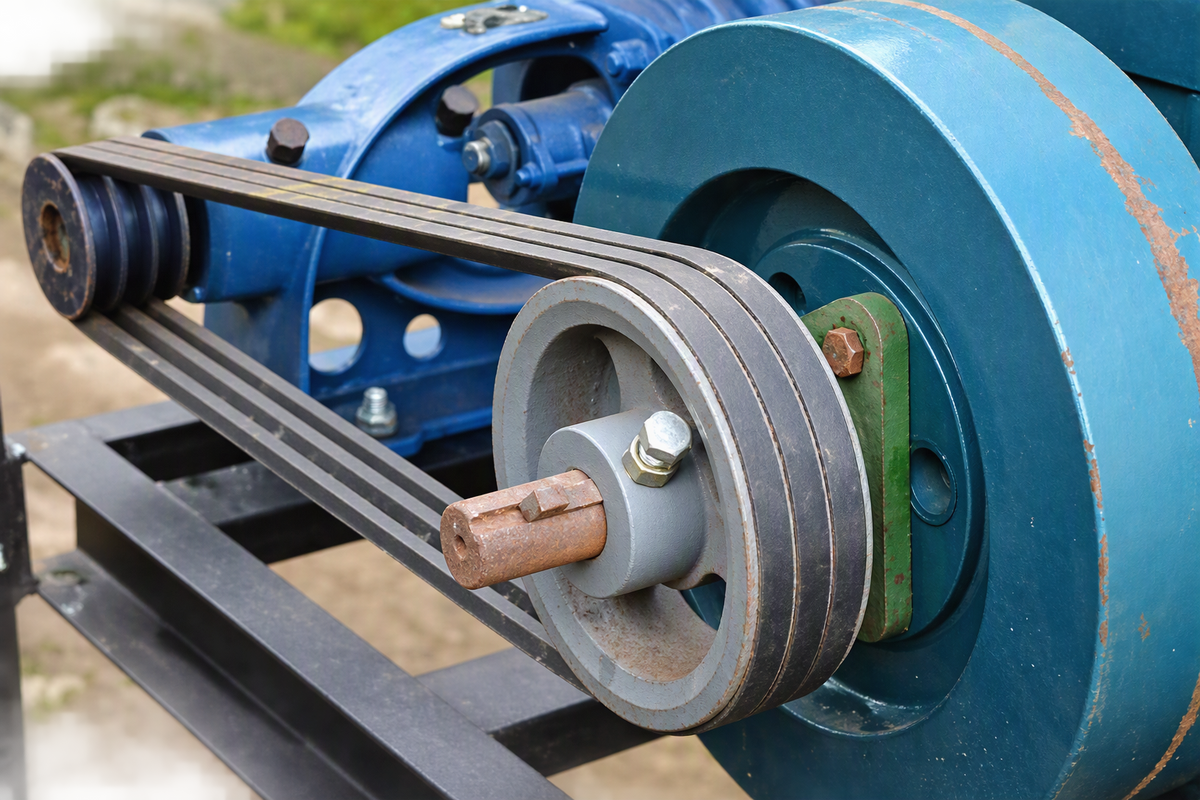

Worn-out belt, no part number? You can work out what you need with a tape or a piece of string.
Step 1: Measure the length
Belt off the machine:
- Mark a line across the belt with a white marker.
- Line a flexible tape up with the mark.
- Wrap the tape around the outside of the belt until it meets the mark.
Belt still on the pulleys:
- Hold one end of a piece of string on top of the belt.
- Wrap the string around the pulleys until it meets the other end.
- Mark where the two ends meet and take the string off.
- Lay it flat and measure from the end to the mark.
Step 2: Find the section
Look for the letters on the belt:
· Classical V-belts: Z, A, B, C, D, E
· Fractional horsepower (FHP): 3L, 4L, 5L
· Narrow/Wedge V-belts: SPZ, SPA, SPB, SPC
· US Narrow V-belts: 3V, 5V, 8V
No markings left? Measure the top width and depth and compare them to a section chart. Our full guide has one.
Step 3: Work out the part number
What you've measured is the outside length. For classical belts, subtract the amount below to get the belt number:
|
Section |
Subtract |
|
A |
2" |
|
B |
3" |
|
C |
4" |
|
D |
5" |
|
E |
6" |
Example: an A-section belt measuring 24" outside is an A22.
Most belts are sized in inches, so if your tape is metric, divide by 25.4.
