Product Description

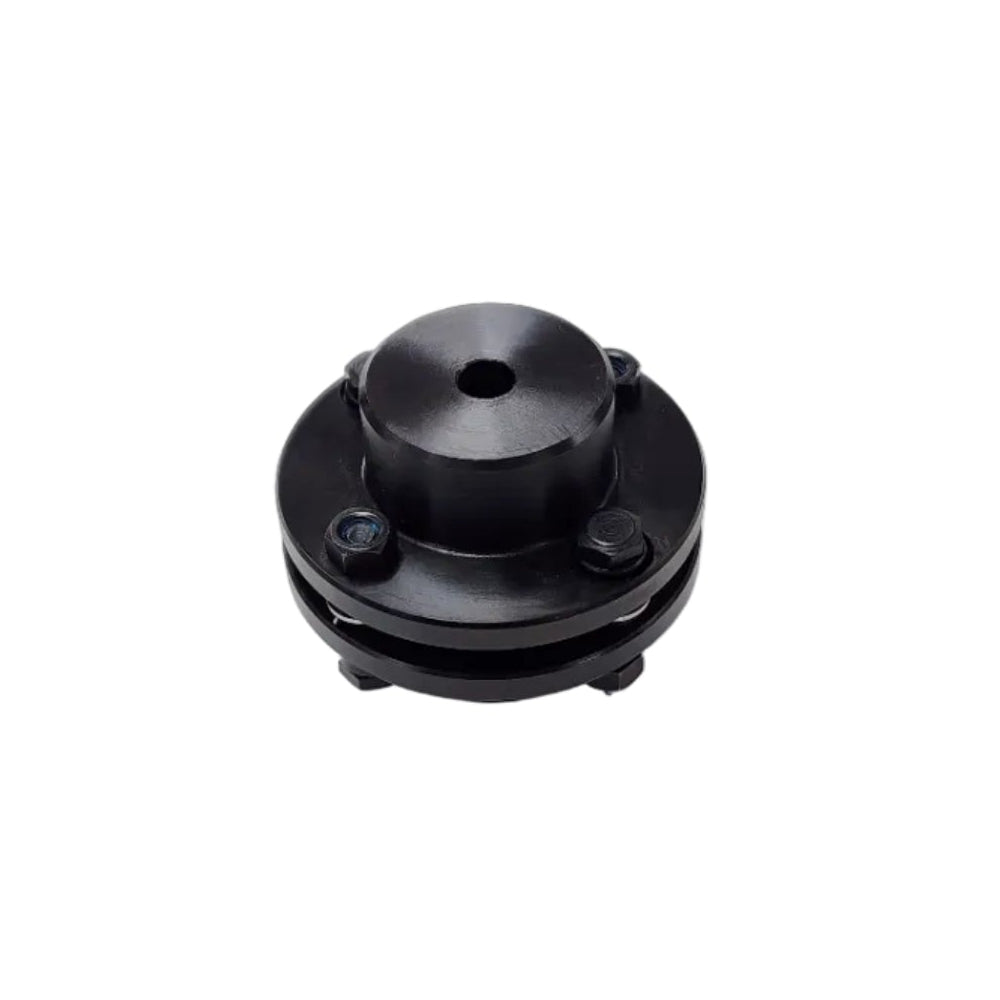

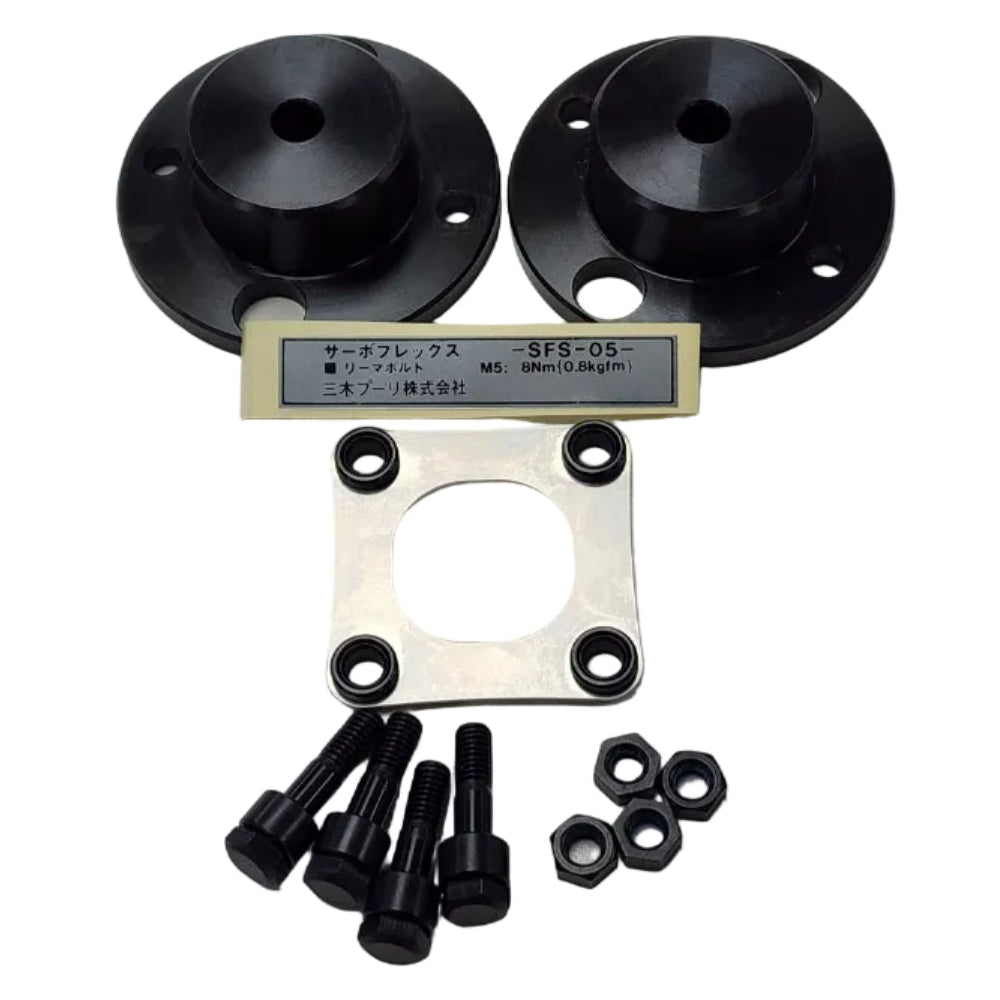

The MIKI Servoflex SFS Series is a zero-backlash, torsionally rigid servo coupling designed for accurate torque transmission in motion control applications. Featuring pilot bore hubs that can be machined to suit your required shaft sizes, these couplings provide excellent positioning accuracy, low inertia, and reliable performance in servo motors, stepper motors, CNC machinery, and automation equipment. Suitable for custom applications requiring precision and flexibility.
| Type | Complete coupling |
| Series / Model | SFS-06S |
| Bore Size | Pilot Bore (7mm) |
| Max Bore | 25mm |
| Outside Diameter | 68mm |
| Overall Length | 56mm |
| Nominal Torque | 40Nm |
| Max Speed | 20,000 rpm |
| Max Misalignment | 1° angular, ±0.8mm axial. |
| Operating Temperature Range | -30°C to +120°C |
| Tightening Bolts Type | M6 x 4 |
| Tightening Torque (Nm) | 14Nm |
| Material | S45C medium-carbon steel |
| Brand | MIKI Pulley |
| Unit | Each |
